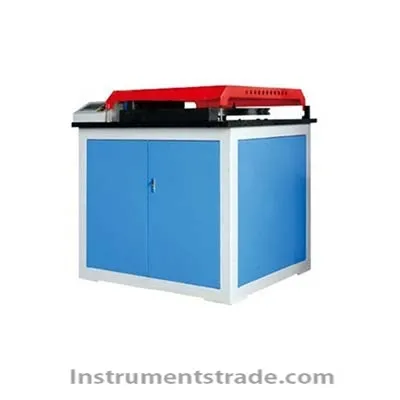

Introduction: Rebar bending test machine Use: Rebar bending test machine GW-40B is a positive and negative bending test of the test equipment, the main technical parameters and indicators YB / T5126-2003 / GB1499.2-2007 / GB5029- 85 << steel plane reverse bending test >> requirements. For the steel mills and construction units to test the bending strength of the rebar is essential test equipment, while adapting to the construction industry in the field of steel bending, to test and construction of a dual-use. Features: 1, by changing the different specifications of accessories to bend different diameter materials, saving customers money. 2, the device performance is complete, good quality and has the advantages of compact structure and small size, easy operation, large carrying capacity, stable operation, low noise, intuitive digital display bending angle. 3, installed on a stable basis, the horizontal error should not exceed 0.5 / 1000 Technical Parameters: Product Type: GW-40B Bending steel diameter range: φ6-φ40mm Reinforced forward bending angle: 0 ° -180 ° arbitrarily set Reverse bending steel angle: 0 ° -90 ° arbitrarily set Working disk speed: <3.7 r / min Working disc diameter: φ 580mm Motor power: 1.5kw Random set with curved heart sleeve (mm): 3 × Ф6, 3 × Ф8, 3 × Ф10, 3 × Ф12, 3 × Ф14, 3 × Ф16, 3 × Ф18, 3 × Ф20, 3 × Ф22, 3 × Ф25, 4 × Ф28, 4 × Ф32, 4 × Ф36, 4 × Ф40 each one Overall dimensions: 1050 × 760 × 1170mm Weight: 800kg Power: 380V ± 10% / 50Hz
Introduction: Rebar bending test machine Use: Rebar bending test machine GW-40B is a positive and negative bending test of the test equipment, the main technical parameters and indicators YB / T5126-2003 / GB1499.2-2007 / GB5029- 85 << steel plane reverse bending test >> requirements. For the steel mills and construction units to test the bending strength of the rebar is essential test equipment, while adapting to the construction industry in the field of steel bending, to test and construction of a dual-use.
