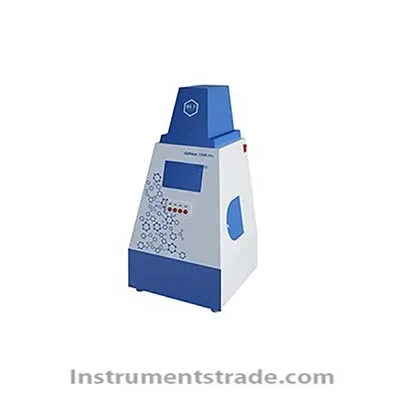

GV 5000 Pro automatic gel imaging system Introduction
1. Can be used for imaging various UV and blue light excitation samples, such as: EB, GoldViewTM, GeneFinderTM, SYBRTMGreen, etc.
2. Can be used for visible light excitation sample imaging, such as: silver dyed plastic, test dye, colony, inhibition zone, microplate, spot hybridization, film and so on. Features
1. Nucleic acid gel imaging, protein gel imaging, etc. that satisfy a variety of dye staining;
2. Ultra-high resolution digital camera: 5 million effective pixels with extremely high resolution;
3. F1.2/8-48mm zoom lens, auto focus, no manual adjustment required;
4. UV lamp delay (customizable) off and switch door UV automatic closing function;
5. Analyze and calculate various gel electrophoresis, clone counting, microplate, inhibition zone, antibiotic titer, object slice and other pictures;
6. With UV observation port and cutting mouth;
7. The light source can be selected through the body, and can be observed without a computer. Technical Parameters
Camera
1.1 Gray value: 16bit
1.2 pixel value: 2590 × 1944, 5 million pixels
1.3 Dynamic Range: >3.4OD
1.4 Sensitivity: 10pg DNA
1.5 Unique dark current correction technology and pixel point defect correction technology greatly improve the camera detection signal to noise ratio and obtain the best quality image.
1.6 Fully automatic F1.2, 6x optical zoom lens with adjustable focal length of 8-48mm.
2. Black box
2.1 New design black box with anti-UV observation window and glue recovery cutting mouth
2.2 Patented wide-angle emission filter technology, the perfect combination of two-phase color mirror and broadband pass filter, effectively remove stray light and improve the sensitivity of fluorescence detection.
2.3 306nm push-pull UV transilluminator
2.4 Both sides of the LED blue light source, energy 0-100% adjustable, can be used for imaging applications such as SYBR Green, Gel Green.
2.5 LED white light source on both sides, adjustable energy 0-100%, used for illumination and Coomassie brilliant blue or silver dyed protein glue, film or film
2.6 Light source switch can be panel controlled or software controlled
2.7 Optional UV white light conversion plate for dyed or silver dyed protein glue, film or film imaging
3. Software
3.1 BioLight software includes image acquisition, enhancement and analysis functions, such as "Flat field correction" and "illumination correction", which can optimize imaging performance and quantitative analysis ability, making the analysis results more accurate. .
3.2 Features of the pilot structure The operational process aids make the software easy to use.
3.3 Three-step lane and strip analysis can quickly calculate the molecular weight and quality of proteins and nucleic acids.
3.4 Special areas of interest can be defined manually or automatically and measured or counted.
3.5 Different display algorithm programs can be used to graphically display strip differences.
3.6 Prepare images and annotations for article publication and generate economical hard copy printing.
