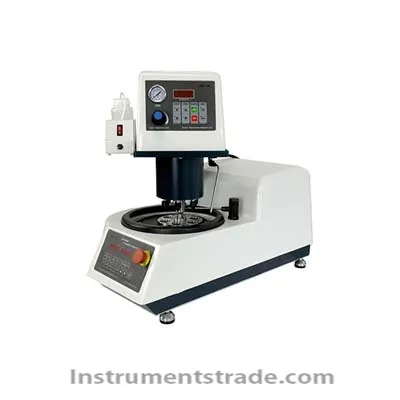

GP-1000A Automatic Grinding and Polishing Machine Introduction: GP-1000A automatic single disc desktop grinding and polishing machine is suitable for pre grinding, grinding, and polishing metallographic specimens. This machine can achieve a speed between 50-1000 revolutions per minute through a frequency converter, making it more versatile and an essential high-end automatic equipment for users to make metallographic specimens. characteristic: (1) Digital display of sample preparation speed; (2) Load pressure, adjustable sample preparation time; (3) The grinding and throwing disc has two functions: three-level fixed speed/timing and stepless speed regulation; (4) The grinding disc speed is infinitely adjustable between 50-1000rpm, and the grinding and polishing head speed is infinitely adjustable between 20-200rpm; (5) Equipped with a quick replacement grinding disc and multiple sample holders; (6) Aerodynamic multi-point loading; (7) Large capacity abrasive automatic distribution system; (8) Six samples can be processed simultaneously. Technical parameters: 1. Model: GP-1000A 2. Number of grinding chassis discs: single disc Speed: 50-1000rpm Power: 750W Steering: clockwise/counterclockwise Grinding disc diameter: 8 "-10" (200/250mm) 3. Grinding head pressure method: single point pneumatic loading Speed: 20-200rpm Single point pressure: 0.1~0.4MPa Power: 250W 4. Dropping system: automatic dripping of one set 5. Maximum water pressure for water supply:<0.3MPa Inlet pipe diameter: OD=Φ 8mm Outlet pipe diameter: OD=Φ 32mm Circulating water tank: optional 6. Noise:<40dBA (measured at a distance of 1 meter) 7. Operating environment temperature: -20 ° C -60 ° C (-4 ° F -140 ° F) Humidity: 0-95% RH 8. Voltage: 110V 60Hz, 220V 50HZ 9. Clamping disc: 6x Φ 40mm, 3x Φ 50mm 10. Dimensions W × D × H: 416x774x669mm 11. Weight: 65kg
Introduction: GP-1000A automatic single disc desktop grinding and polishing machine is suitable for pre grinding, grinding, and polishing metallographic specimens. This machine can achieve a speed between 50-1000 revolutions per minute through a frequency converter, making it more versatile and an essential high-end automatic equipment for users to make metallographic specimens.
