GH-D electronic thickness gauge

Product ID:HZBZzyhd013

Price: Please inquire PDF Format
Supply Ability:80 SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberGH-D
    Brand NameGUANGZHOUBIAOJI
    Payment TermsT/T, paypal

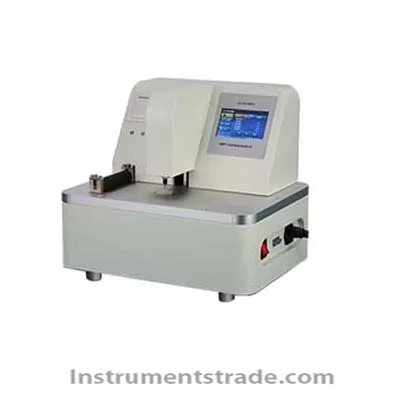

    GH-D electronic thickness gauge
    Introduction:
    GH-D electronic thickness gauge is a high-precision digital thickness gauge integrating light, machine, electricity and calculation, which is easy to operate. The measurement result is a digital display. And you can connect to a computer for automatic control. It is mainly used for thickness measurement or comparative measurement of plastic film, paper and other materials. Execution standards: ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D645, ASTM F 2251, ASTM D374, ASTM D1777, TAPPI T411, DIN 53105, DIN 53353, JIS K6250 , JIS K 6328, JIS K6783, JIS Z1702, BS 3983, BS 4817
    Features:
    1. Accurate test, reliable operation, measurement resolution up to 0.1 micron
    2. Support single point and multi-point measurement, set the number of measurement points and the distance between measurement points.
    3. Automatic and manual operation modes.
    4. The LCD screen displays the maximum, minimum, average and current values ​​in real time.
    5. Built-in printer to print test reports.
    Technical Parameters:
    Measuring range: 0~3mm
    Measurement accuracy: 0.1μm
    Measuring points: 0~30 points
    Measuring point spacing: 0~1000mm
    Measuring force: 0.5N
    Measuring head: Φ5mm (can be customized)
    Working temperature: 0~40°C
    Dimensions: 400 × 310 × 340mm
    Weight: 25kg
    Power: 1000W
    Power supply: AC 220V, 50Hz





  • Introduction:
    GH-D electronic thickness gauge is a high-precision digital thickness gauge integrating light, machine, electricity and calculation, which is easy to operate. The measurement result is a digital display. And you can connect to a computer for automatic control. It is mainly used for thickness measurement or comparative measurement of plastic film, paper and other materials. Execution standards: ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D645, ASTM F 2251, ASTM D374, ASTM D1777, TAPPI T411, DIN 53105, DIN 53353, JIS K6250 , JIS K 6328, JIS K6783, JIS Z1702, BS 3983, BS 4817
