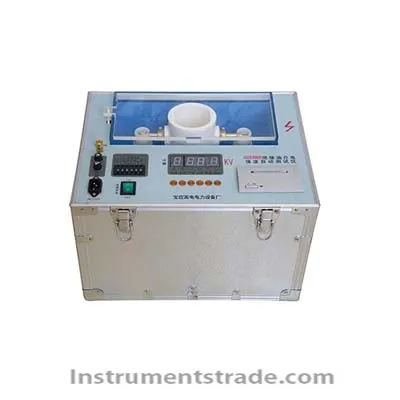

Introduction: GD5360B insulating oil dielectric strength tester is in accordance with the International Electrotechnical Commission standard international IEC-156 and GB507-86 "Insulating Oil Dielectric Strength Determination" requirements, to SCM-led, using the first set after the boot test method, The whole process is automatically controlled by the microcomputer, easy to operate. The operation is divided into automatic six times and automatic one-time operation, with automatic boost test, automatic mixing, automatic processing, automatic printing and digital display and locking technology and other functions, intuitive readings, accurate measurement, testing process safe and reliable. GD5360B Insulating Oil Dielectric Strength Tester adopts the advanced technology of central processing unit and large scale integrated circuit to form the automated test equipment. The operation process is fully automated. The test data of the oil test can be printed on the miniature printer with the panel configuration. Compared with the same type of test equipment has good stability, high precision, and has good operability, the device test operation in a variety of oil test mode of operation. Features: 1. With automatic detection function, such as the boot automatically enter the reset state to perform regulator back to zero. The company is located in: 2. Using a mini TPU-A panel printer, automatic print output. 3. The use of automatic magnetic oscillator stirring to eliminate uneven oil and bubbles. The company is located in: 4. Anti-interference, easy to operate, with automatic mixing and continuous testing. The company is located in: 5. Using digital display and locking technology, intuitive readings, high measurement accuracy. The company is located in: 6. Can change the number of tests, stirring stand still time, voice control light to remind continuous printing and non-printing. The company is located in: 7 preset by the DIP switch, through the computer strictly according to preset parameters entertainment program. After running, print the result as needed. Technical Parameters: Working power: AC220V ± 10%, 50HZ ± 5% Measuring range: AC 0-80KV Limited current: 5mA Measurement accuracy: 1% Pressure regulating speed: 2KV / S ± 10% Scheduled settings: Times 1-9 Mixing time 0-1 minutes 39 seconds Standing time 0-10 minutes 39 seconds Conditions of use: Ambient temperature 0 ℃ -35 ℃ Relative humidity ≤ 75% Oil cup clearance: 2.5mm (oil cup feeler gauge) Volume: 415 * 215 * 315 Weight: 28kg
Introduction: GD5360B insulating oil dielectric strength tester is in accordance with the International Electrotechnical Commission standard international IEC-156 and GB507-86 "Insulating Oil Dielectric Strength Determination" requirements, to SCM-led, using the first set after the boot test method, The whole process is automatically controlled by the microcomputer, easy to operate. The operation is divided into automatic six times and automatic one-time operation, with automatic boost test, automatic mixing, automatic processing, automatic printing and digital display and locking technology and other functions, intuitive readings, accurate measurement, testing process safe and reliable. GD5360B Insulating Oil Dielectric Strength Tester adopts the advanced technology of central processing unit and large scale integrated circuit to form the automated test equipment. The operation process is fully automated. The test data of the oil test can be printed on the miniature printer with the panel configuration. Compared with the same type of test equipment has good stability, high precision, and has good operability, the device test operation in a variety of oil test mode of operation.
