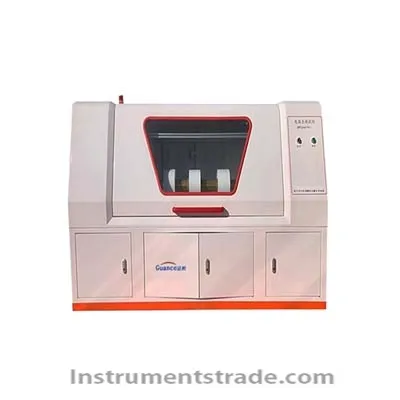

GCDRD-5KV Thin Film Electrical Weakness Testing Instrument Introduction: This instrument is mainly used for automatically boosting the breakdown points per square meter of insulation materials such as polyurethane film, plastic film, and polypropylene film for electrical purposes under a given DC voltage. This instrument is controlled by a microcomputer, and the speed of film rolling can be set. The voltage is increased according to the set rate. After reaching the set voltage, the current voltage and current values are recorded in real time, and the current breakdown point can be recorded in real time. After the test is completed, it automatically resets to zero, counts the number of weak points and weak lines, and calculates the number of weak points per square meter. This instrument has a high degree of automation, simple operation, convenient installation of film rolls, and a floor standing structure for easy operation. characteristic: 1. Easy to operate: After fixing the roll in and out, click to start automatic testing 2. Dynamic display: After the thin film is broken down, the dynamic display curve is synchronized for intuitive visualization 3. Easy installation: Place the mold roll into the inflation shaft, and the ventilation will automatically fix it 4. Adjustable tension: can adjust the tension of winding and unwinding in real time 5. Multiple modes: testing area/testing length/testing time 6. Breakdown point determination: Real time recording of data on electrical weak points and test lengths, which can be used to statistically query the length between electrical weak points 7. Automatic storage: After the introduction of the experiment, an automatic pop-up window will prompt the storage of data 8. Intelligent automation: This machine is highly intelligent and automated, and can be operated without professional training Technical parameters: Product Name: Electrical Weakness Tester Product model: GCDRD-5KV Test voltage: 5KV/AC/DC Supply voltage: 220V/50HZ Collection accuracy: ± 1% Boosting rate: 0-5.0KV Equipment dimensions: length, width, and height=1200 * 650 * 1600 (mm)
Introduction: This instrument is mainly used for automatically boosting the breakdown points per square meter of insulation materials such as polyurethane film, plastic film, and polypropylene film for electrical purposes under a given DC voltage. This instrument is controlled by a microcomputer, and the speed of film rolling can be set. The voltage is increased according to the set rate. After reaching the set voltage, the current voltage and current values are recorded in real time, and the current breakdown point can be recorded in real time. After the test is completed, it automatically resets to zero, counts the number of weak points and weak lines, and calculates the number of weak points per square meter. This instrument has a high degree of automation, simple operation, convenient installation of film rolls, and a floor standing structure for easy operation.
