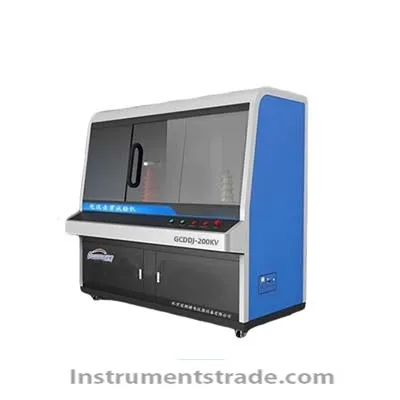

GCDDJ-200KV epoxy resin breakdown voltage meter Introduction: The GCDDJ-200KV epoxy resin breakdown voltage tester is mainly suitable for testing the breakdown strength and voltage resistance of solid insulation materials (such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, insulation paints, and other insulation materials and components) under power frequency voltage or DC voltage. Technical parameters: Electrical capacity: 5KVA Output voltage: AC/DC-100KV Input voltage: AC-220V/50HZ Boosting rate: 0.1KV/S-5KV/S can be manually set Boosting method: uniform boosting/gradient boosting/withstand voltage test Breakdown judgment stop: voltage judgment stop/current judgment stop Test medium: air test/oil bath test/high temperature test. High temperature is optional Data collection: photoelectric isolation line, strong anti-interference ability Voltage accuracy: ≤ 1.5% Leakage current: 0-100mA sensor range Voltage sensor: 0-100V sensor range Electrode specifications sheet electrode: 2 pieces with a diameter of 25mm and 1 piece with a diameter of 75mm can be customized according to requirements Humidity: ≤ 65% Host dimensions: 1500mm * 850mm * 1700mm Experimental space dimensions: length, width, and height -750mm * 600mm * 800mm Test door observation window glass door size: length and width 550mm * 600mm large window for easy observation Equipment weight: approximately 250KG
Introduction: The GCDDJ-200KV epoxy resin breakdown voltage tester is mainly suitable for testing the breakdown strength and voltage resistance of solid insulation materials (such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, insulation paints, and other insulation materials and components) under power frequency voltage or DC voltage.
