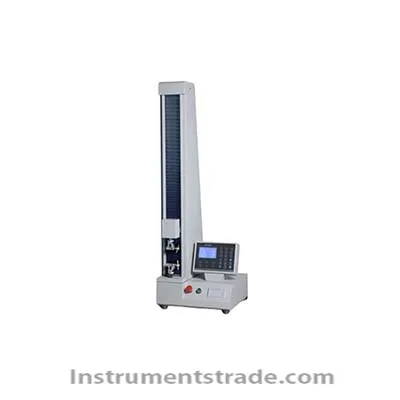

GBL-L Electronic Tensile Tester

Product ID：WSHll036

Price: Please inquire PDF Format

Supply Ability:20 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberGBL-L

Brand NameGUANGZHOUBIAOJI

Payment TermsT/T, paypal

GBL-L Electronic Tensile Tester
Introduction
GBL-L popular single-column electronic tensile testing machine is suitable for all kinds of plastic film, paper aluminum-plastic composite film, all kinds of soft elastic materials, rubber sheets, adhesive tapes, adhesives, paper, non-woven fabrics, etc. The material was tested for mechanical properties such as stretching, peeling, heat sealing, and tearing. It has the advantages of high precision, convenient operation, intuitive and reliable, and wide application. It meets the requirements of the national technical supervision department for testing technology, and is widely used in quality inspection, drug inspection, scientific research, packaging, film, food, medicine, and daily chemical industries.
Executive standards: GB8808, GB13022, GB/T1040, GB4850, GB/T7753, GB/7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB /T 2792, GB/T 7122, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358

Feature
1. Can test stretching, stripping, and sealing strength.
2. User can set various parameters like width, speed, thickness and distance.
3. Results are shown on LCD screen.
4. Can print out testing results with built-in thermal printer.
5. 3 levels of security protection make the experiment safer.
6. High sampling speed (50 times/s) and accurate data.
7. Core parts are imported, with high precision and durability.
8. Table standing design for sitting operation, easy and comfortable.

Technical parameter

Force range	0-300N (0~500N optional ), 1250% elongation
Force accuracy	within ±1% of the displayed value (grade 1)
Force resolution	1/50000 of full capacity of sensor
Test speed	100mm/min, 200mm/min, 250mm/min
Displacement	within ±1% of the displayed value
Test width range	30mm
Travel distance range	700mm
Instrument size	600×500×1300mm
Power	500W
Weight	65kg

GBL-L popular single-column electronic tensile testing machine is suitable for all kinds of plastic film, paper aluminum-plastic composite film, all kinds of soft elastic materials, rubber sheets, adhesive tapes, adhesives, paper, non-woven fabrics, etc. The material was tested for mechanical properties such as stretching, peeling, heat sealing, and tearing.
