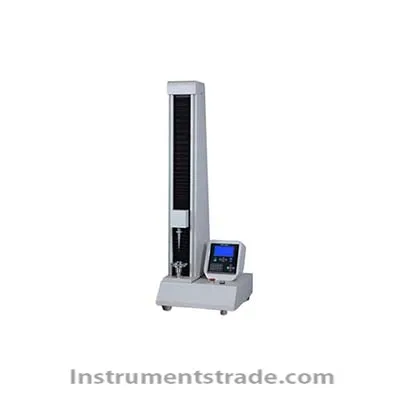

GBH-1 electronic tensile testing machine

Product ID：WSHll037

Price: Please inquire PDF Format

Supply Ability:20 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberGBH-1

Brand NameGUANGZHOUBIAOJI

Payment TermsT/T, paypal

GBH-1 electronic tensile testing machine
Introduction
GBH-1 multi-function single-column electronic tensile testing machine is suitable for stretching various plastic film, paper aluminum-plastic composite film, tape, soft packaging material, rubber sheet, paper, non-woven fabric, etc. Testing of mechanical properties such as peeling, heat sealing, tearing, puncture, compression, bending, shearing, etc. It has the advantages of high precision, convenient operation, intuitiveness, reliability and wide application. It meets the requirements of the national technical supervision department for testing technology, and is widely used in the control and testing institutions for product quality of plastic film, food and pharmaceutical manufacturers. The school's scientific research and teaching experiments.
Executive standards: GB/T8946, GB 8808, GB 13022, GB/T1040, GB4850, GB/T 7753, GB/T 7754, GB/T 453, GB/T17200, GB/T16578.1, QB/T1130, GB/ T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GBT 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4 , ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358
Features
1. Versatile functions, interface and operation modes; multiple parameters setting.
2. Computer controlled, online display of test result, auto data storage and analysis, multiple curves record, zoom in/out, computer print.
3. Modularized, can extend function.
4. Control module can be built in (for simplistic structure and saving space), or be installed external (for easy upgrade, maintenance, and independent working without computer)
5. 3 levels of security protection.
6. High sampling speed (100 times/s)
7. Core part is imported, with high precision and durable.
8. Table standing design for sitting operation, easy and comfortable.
9. Various clips optional for different test purposes.
Technical parameters

Force range	0~500N (0~3000N optional ), 1500% elongation
Force accuracy	within ±0.5% of the displayed value (grade 0.5)
Test speed	0-500mm/min (infinitely variable speeds)
Displacement	within ±0.5% of the displayed value
Test width range	30mm
Travel distance range	800mm
Instrument size	600×600×1300mm
Power	1000W
Weight	70kg

Introduction
GBH-1 multi-function single-column electronic tensile testing machine is suitable for stretching various plastic film, paper aluminum-plastic composite film, tape, soft packaging material, rubber sheet, paper, non-woven fabric, etc. Testing of mechanical properties such as peeling, heat sealing, tearing, puncture, compression, bending, shearing, etc. It has the advantages of high precision, convenient operation, intuitiveness, reliability and wide application. It meets the requirements of the national technical supervision department for testing technology, and is widely used in the control and testing institutions for product quality of plastic film, food and pharmaceutical manufacturers. The school's scientific research and teaching experiments.
Executive standards: GB/T8946, GB 8808, GB 13022, GB/T1040, GB4850, GB/T 7753, GB/T 7754, GB/T 453, GB/T17200, GB/T16578.1, QB/T1130, GB/ T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GBT 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004, ASTM D828, ASTM E4 , ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358
