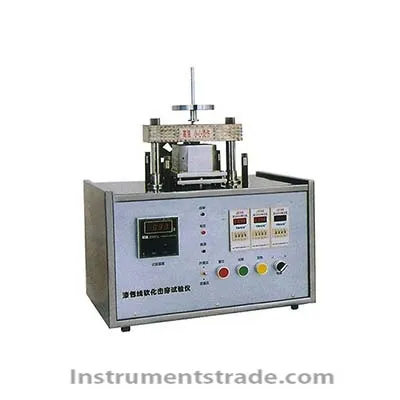

Introduction: Soften the breakdown tester main scope and function: Used to test the enamel insulated paint temperature value. Softening penetration tester reference NEMA standards and JIS standards, in line with GB / T4074.6-1999, IEC60851-6 standard requirements Features: 1 with reference to NEMA standards and JIS standards, in line with GB / T4074.6-1999, IEC60851-6 standard requirements 2 has a simulation of temperature and temperature method of two test methods function 3 Automatically complete the heating, plus load, plus the entire test voltage 4 fixed temperature and heating method automatically switch 5 in the set temperature and time the sample has not been breakdown, the instrument automatically raise the test temperature until the sample is breakdown 6 When the sample is broken down automatically unload and alarm and display the test time and temperature 7 automatically forced air-cooled test mold, so that the second test carried out quickly 8 automatic thermostat Technical Parameters: Heating mold size: 100 × 100 × 70mm Test voltage between two samples: AC100 ± 10V Sample breakdown current: 5 ± 0.5mA Short circuit current between samples: <50mA Display temperature and sample intersection temperature difference: <2 ℃ Sample preheating time, test time: 1 second to 99 minutes and 59 seconds arbitrary setting The maximum test temperature: ≤ 500 ℃ Set the temperature test temperature setting: 0 ~ 500 ℃ arbitrarily set Input power: AC220V ± 10% 50Hz Heating power: 750W Dimensions: L × W × H 520 × 360 × 500mm Weight: about 35Kg
