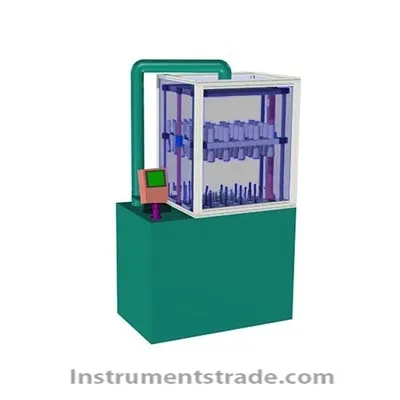

Introduction: Insulation material breakdown tester This test bench is made of various insulating materials made of products in the production line to do online high-pressure test, the test bench can test 25 products at a time, set the withstand voltage and voltage withstand time After loading and holding the sample, the upper and lower electrode fixing plates on the test stand will automatically close the sample and automatically raise the voltage to the set voltage. When the pressure time expires, the test voltage is automatically cut off and automatically lifted to the initial position. During the pressure test, if the compressive strength of a certain sample is not enough to break down, the system will automatically cut off the voltage of the product circuit and record the withstand voltage time. At the same time, the withstand voltage test of other tested samples will be carried out normally. Arrived, the system will automatically prompt the label of substandard products (No. 1-25), the operator sorted according to the prompts of substandard products. The test bed control system using Beijing Kunlun Tongti color touch screen display. Operating software interface includes setting parameters and test parameters and other options, the next crew using Panasonic FPX0060R series programmable logic controller, analog acquisition systems are used industrial grade transmitter, the system is reliable, the failure rate is very low, can be used in the production line large Bulk testing of insulation products. Note: The test electrodes of the test bench can be freely disassembled and assembled according to the shape and size of the test sample. Each sample does not have a test electrode of a special size. When the test needs to be done, the test electrode of the product can be replaced first, Tighten the end of the bell-type fixed way, you can use different samples of uniform diameter, without replacement. Technical Parameters: 1, equipment input voltage: AC 220V 2, test voltage method: AC 0--35 KV; DC 0--35 KV; 3, electrical capacity: 3 KVA 4, leakage current selection: 1-50 mA setting. 5, step-up mode: automatic step-up (stepper motor drive) 6, support for short-term short-circuit test requirements. 7, at the same time the number of test samples: 25 (each test) 8, the voltage measurement error: ≤ 2% 9, the test voltage continuously adjustable: 0--35 KV 10, pressure time setting: 0-1 hours (can be set continuously) 11, eight safety precautions: (1) overpressure protection (2) test over-current protection (3) test short circuit protection (4) security door open protection (5) Software misoperation protection (6) zero voltage reset protection (7) The end of the test discharge protection (8) Independent protection grounding
