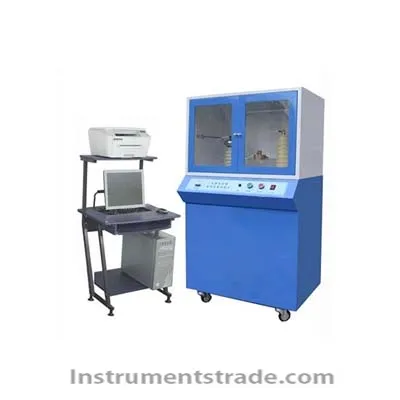

Introduction: Voltage breakdown tester The machine to meet the GB1408-2006 "insulation material electrical strength test method", GB / T1695-2005 "vulcanized rubber power frequency voltage breakdown strength and voltage strength test", GB / T3333 "power frequency voltage electrical paper Breakdown test method ", HG / T 3330" insulating paint film breakdown strength determination method ", GB12656" Capacitor paper frequency voltage breakdown test method "and ASTM D149 standards.Mainly suitable for solid insulation materials such as: plastic, Film, resin, mica, ceramic, glass, insulating paint and other media in the power frequency voltage or DC voltage breakdown strength and voltage withstand time of the test; the computer-controlled instrument that can test a variety of data during the fast , Accurate collection, processing, and access, display, print. Technical Parameters: 1, the input voltage: AC 220V 2, the output voltage: AC 0--50 KV; DC 0 - 50 KV 3, electrical capacity: 6 KVA 4, high pressure classification: 0--5KV; 0-10KV; 0 - 20KV; 0 - 50KV 5, Boost rate: 500 V / S 1000 V / S 2000 V / S 6, test methods: DC test: 1, uniform boost 2, step-up step 3, pressure test AC test: 1, uniform boost 2, step-up step 3, pressure test 7, over-current protection device should have sufficient sensitivity to ensure the sample breakdown in the 0.1S cut off the power. 8, leakage current selection: 1-100 mA can be set freely by the computer software. 9, the instrument uses advanced non-contact original uniform voltage regulator, eliminating similar products in the mechanical transmission step-up 10, support for short-term short circuit test requirements (other similar products do not have this feature) 11, voltage measurement error: ≤ 2% 12, the test voltage continuously adjustable: 0 - 50 KV 14, pressure time setting: 0-24 hours
Introduction: Voltage breakdown tester The machine to meet the GB1408-2006 "insulation material electrical strength test method", GB / T1695-2005 "vulcanized rubber power frequency voltage breakdown strength and voltage strength test", GB / T3333 "power frequency voltage electrical paper Breakdown test method ", HG / T 3330" insulating paint film breakdown strength determination method ", GB12656" Capacitor paper frequency voltage breakdown test method "and ASTM D149 standards.Mainly suitable for solid insulation materials such as: plastic, Film, resin, mica, ceramic, glass, insulating paint and other media in the power frequency voltage or DC voltage breakdown strength and voltage withstand time of the test; the computer-controlled instrument that can test a variety of data during the fast , Accurate collection, processing, and access, display, print.
