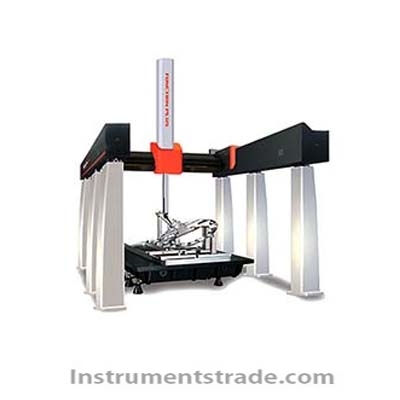

Brief introduction: Function Plus series gantry measuring machine is specially designed for large size and super-size parts measurement, which meets the requirements of precision measurement and quality verification of aerospace, mold and parts manufacturing enterprises. Originated from the profound application experience of coordinate measuring system of Hexagon metrology industry group, based on the cutting-edge gantry type measuring machine design and manufacturing technology, it ensures the long-term stability and reliability of the whole machine precision, the application of modular design and material design technology, making Function Plus have the efficiency and flexibility necessary for modern manufacturing industry. Each type of Function Plus provides optimized precision and efficiency, and customers can choose the appropriate model according to their needs. Function Plus range from 2000mm*3300mm*1000mm to 2500mm*5000mm*1800mm. Technical features: • beam adopts inclined roof technology obtained by Hexagon metrology industry group, which makes the system more rigid and dynamic • precision long guide rail adopts high stability granite material, which provides a good foundation for machine accuracy • each shaft of the machine adopts the Heidenhain gilt grating with high resolution, anti-interference and anti-wear, and the temperature expansion coefficient is certified by PTB • X and Z drive, adopts steel wire reinforced synchronous belt, combines flexible meshing with rigid axial transmission to ensure accurate in place • the Z axis adopts adjustable pneumatic balance, which can automatically brake in emergency to ensure the safety of the measuring machine • improve system performance by providing linear temperature compensation software • the software USES pc-dmis (BASIC OR PREMIUM), with perfect intelligent measurement, powerful function, easy to learn and efficient • fully certified PTB compliant with ISO and ANSI standards • flexible and convenient customizable graphical user interface • powerful geometric tolerance evaluation and feature construction • rich reporting modules Technical indicators: • mechanical structure: gantry type measuring machine, inclined beam construction (inclined triangle beam technology). X beam and Z axis are aluminum alloy. The y-column is cast iron column after annealing. • Y guide adopts stable granite material • guide rail: air floating bearings are used for all shafts • transmission system: X axis and Z axis adopt synchronous belt, and Y axis is gear rack transmission • grating system: Heidenhain(gold-plated) linear grating ruler • detection system: sensor: TESA STAR m-m8; Probe: Tesastar - mp • system resolution: 0.156 mm • air source: minimum intake pressure: 0.5mpa (5par) • air consumption: 250Nl/min • temperature compensation system: linear temperature compensation
Brief introduction: Function Plus series gantry measuring machine is specially designed for large size and super-size parts measurement, which meets the requirements of precision measurement and quality verification of aerospace, mold and parts manufacturing enterprises. Originated from the profound application experience of coordinate measuring system of Hexagon metrology industry group, based on the cutting-edge gantry type measuring machine design and manufacturing technology, it ensures the long-term stability and reliability of the whole machine precision, the application of modular design and material design technology, making Function Plus have the efficiency and flexibility necessary for modern manufacturing industry. Each type of Function Plus provides optimized precision and efficiency, and customers can choose the appropriate model according to their needs. Function Plus range from 2000mm*3300mm*1000mm to 2500mm*5000mm*1800mm.
