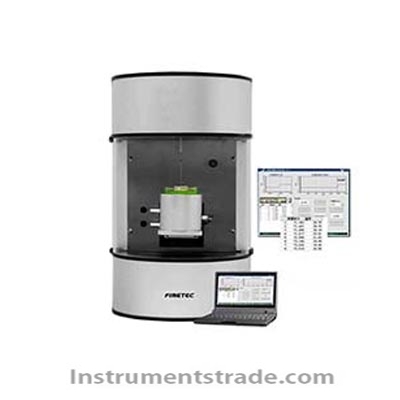

Finesizer-5400 Powder synthesis characteristic measuring instrument

Product ID:WLft005

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberFinesizer-5400
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction
        The instrument can be used to test the seven important characteristic parameters of the powder and three additional parameters, these Parameters have a great meaning in the process and design of the powder, quality control, packing and shipping.
        The testing items include: Angle of Repose, Angle of Collapse, Flat Angle, Dispersion, Loose Density, Tap Density and so on. We can get the indexed such as declinate, degree of compression, voidage, evenness by the above parameters and to get the further powder liquidity index, flow index parameters and so on.
       The instrument can achieve pluripotent use and a high degree automotive design ,which has been widely used in quality control of powder production enterprise.
    Features
    One instrument can test at least ten kinds of powders characteristic parameters
    The test of each parameter all have labeling process, to avoid personal equation
    Automatic control of type sample tray and sampling device
    Mask of acrylic material glass, avoiding the pollution
    Streamlined design, fitting the design of ergonomics
    Configure lighting and picture pickup system
    Test procedure is controlled by software and the report would be formed together
    Technical parameters
    Size L450,H660,D460 mm
    Weight 40 Kg
    Power AC220V 50/60Hz
    Operational Environment 0-50 C, 5%-95%Rh
    Sample Tray Stainless steel material, spin function
    Vibration Electric magnetic structure, frequency of vibration can be set up
    Measure of Contact Angle Contact angle analyzer, adjust the angle freely
    Angular Adjustment Motor positioning controlled by software
    Lighting System Configure lighting illuminate, convenient for sampling and observation
    Picture Pickup System Collect image information
    Injection Port Funnel type design, convenient for sampling
    Suction Inlet Configure a vacuum cleaner, convenient for cleaning the residual powder
    Clean & Maintenance Each module has stainless steel structure, easy to dismantle and convenient for cleaning
    Amount of Testing 0.1-1Kg
    Container of Testing Straight type, stainless steel material
    Protective Cover Transparent acrylic material
    Software Windows platform Software
    Data Export Support TXT text output,exchange data with Origin


  • Brief introduction
        The instrument can be used to test the seven important characteristic parameters of the powder and three additional parameters, these Parameters have a great meaning in the process and design of the powder, quality control, packing and shipping.
