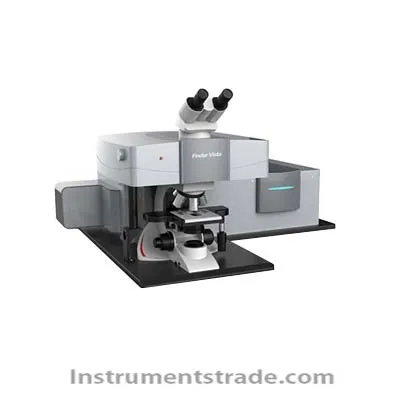

Finder Vista Microscopy Laser Raman Spectrometer

Product ID:FGlm014

Price: US$180,000.00 ~ US$220,000.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberFinder Vista
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    Finder Vista "microman" series of Raman spectrometer is Zhuo Li Han light company developed with higher performance microscopy confocal laser Raman
    Spectrometers, based on a new generation of microscopy confocal optics, with high quality image correction spectrometers and imported CCD detectors, all
    Integration of components, to ensure the stability of the instrument to a limited extent, which can get the sample of the chemical composition,
    Crystal structure, molecular interactions and molecular orientation and other Raman spectra of information, widely used in colleges and universities, research institutes
    Physical and chemical experimental research, such as compound functional group analysis, molecular dynamics studies, carbon fiber / carbon nanotube Raman
    Spectrum analysis, surface analysis \ monolayer film analysis, polymer structure analysis, cell tissue research, criminal investigation,
    Archeology, geology and other multidisciplinary fields.
    Finder Vista "microman" series of micro-confocal laser Raman spectroscopy, in addition to Raman spectroscopy can achieve the function,
    You can also add functional attachments to achieve Raman spectral imaging, PL fluorescence and imaging, fluorescence life measurement and other functions are welcome to contact.
    Features:
    A higher system sensitivity: Chase light aperture image correction spectrometer and imported low-noise scientific grade CCD.
    2 for a variety of samples, in the micro-optical path and Wang Guanglu free to switch between.
    3 high repeatability: optical design robust, fully automatic, integrated design, software control electric switching optical path, after switching without recalibration.
    4 module upgrade options: to provide functional upgrade module to meet various scientific research needs.
    5 easy to operate: software window mode of operation, easy to use
    Technical Parameters:
    The main model: Finder Vista
    Raman spectral range: 60-5,000 cm-1 (typical)
    Resolution: ≤0.9cm-1 (@ 585.25nm)
    Laser: Standard: 532nm (≥100mW, TEM00)
    Options: 266nm, 325nm, 633nm, 785nm and so on
    Microscope: Standard: Upright microscope
    Spatial resolution: horizontal <1μm, vertical <2μm
    Detector Type: TE Deep Cool Back Light CCD (LDC-DD Technology)
    Effective pixels: 2000 × 256
    Cell size: 15 × 15μm
    Quantum efficiency: 95% @ 780nm

  • Finder Vista “Microman” series Raman spectrometer is a micro-confocal laser Raman spectrometer with higher performance. Based on a new generation of micro-confocal optical system, it is equipped with high-quality image correction spectrometer and imported CCD detector. The integration ensures the stability of the performance of the instrument to the greatest extent, so that the information about the chemical composition, crystal structure, molecular interactions, and molecular orientation of the sample can be obtained. Finder Vista “Microman” series Raman spectrometers are widely used in physical and chemical experimental research in universities and research institutes, such as functional analysis of compounds, molecular dynamics research, carbon fiber / carbon nanotube Raman spectroscopic analysis, surface analysis \ Multi-disciplinary fields such as single-layer film analysis, polymer tissue structure analysis, cell tissue research, forensic identification, archeology, geology, etc.
