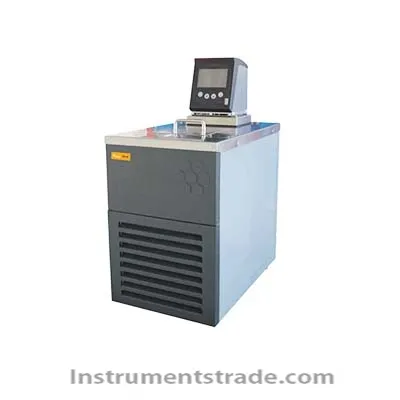

FC1500 cooling water circulator Introduction
FC1500 cooling water circulator is mainly used in bioengineering, medicine, food, chemical, metallurgy, petroleum and other fields. To provide users with high-precision, cold-heat-controlled, constant-temperature constant field source, it is an ideal thermostat for research institutes, universities, factory laboratories, quality inspection departments. Features
1 With a classic black and gray combination, the square shape is simple and generous, giving people a sense of stability.
2 High-brightness, large-view color 5.5-inch LCD LCD display for richer display
3 Molded water tank, one-time stamping with 316 stainless steel, anti-rust, anti-corrosion
4 Motor driven mold turbine quiet pump 10L/min, fully realized hydropower separation
5 Compact structural layout with removable grille for easy maintenance and drainage
6 Using advanced fuzzy PID temperature control technology, it can accurately and quickly achieve stable temperature control effect
7 Compressor refrigeration, R134a environmentally friendly refrigerant, avoiding environmental pollution and harm to experimenters
8 Multiple protection design: over current protection, high and low temperature protection, over temperature protection, low liquid level sound and light alarm, prevent dry burning protection Technical Parameters
Control temperature range: 5 ° C ~ 100 ° C
Temperature stability: ±0.05°C
Temperature display resolution: 0.1 °C
Temperature Control Algorithm: Fuzzy PID
Temperature sensor type: PT100
Heating power: 2000W
Cooling power: 1500W (ambient temperature 20 ° C)
Refrigerant: R134a
Pump flow: 10L/min
Pump pressure: 0.35bar
Tank volume: 10L
Instrument volume: 555mm × 350mm × 750mm
Power supply: 220 VAC ±10% 50Hz
Operating environment: 10 ° C ~ 25 ° C
Instrument weight: 40kg
