Brief introduction:

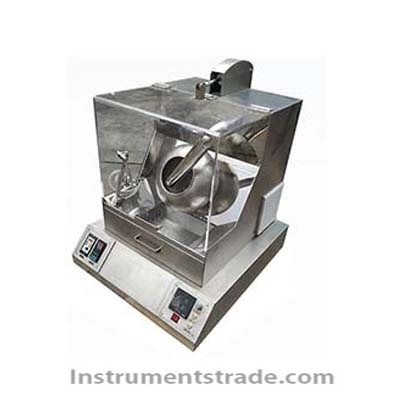

FB series laboratory closed coating machine is designed for pharmaceutical laboratories and pharmaceutical research institutions closed stainless steel coating machine.
Technical features:
1. The closed dressing room is equipped with dust drawer at the lower part, and the outer part is sealed with plexiglass to make the operating space clean.
2, the coating pot speed can be adjusted and digital display;
3. The coating pot is perforated to ensure the one-sided smooth coating.
4. The pot head can be replaced as needed;
5, the air temperature can be adjusted, and equipped with digital display, set the automatic constant temperature;
6. Air inlet is equipped with filter.
7. The machine is equipped with exhaust fan and exhaust filter device.
8. Small size, 220V power supply, easy installation.
Technical parameters:
Total power of the equipment: 1.4Kw
Main motor power: 90w
Inlet fan power: 240w
Heater power: 1200w
Exhaust fan power: 240w
Hot air volume: 320m3/h
Hot air temperature: room temperature to 80 ℃, the temperature digital display, after setting the automatic constant temperature
Coating pot speed: 0~70r/min
Exhaust fan air volume: 320m3/h
