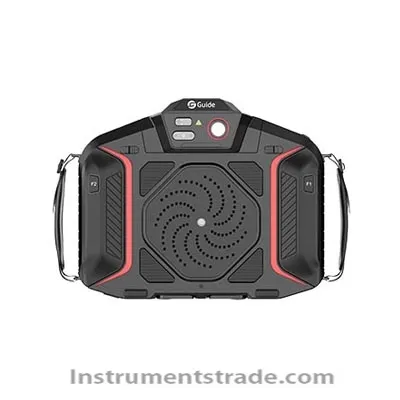

FA611 Infrared Soundwave Imager Introduction: FA series infrared acoustic imaging device, deep fusion of sound image and thermal imaging technology. Equipped with 128 high-precision microphone arrays and 640 × 512 high-resolution infrared detectors, a 10.1-inch touchscreen provides a comfortable viewing experience, and an internal and external battery solution ensures long-lasting battery life. This device has the ability to quickly detect temperature anomalies, accurately locate gas leaks, and identify hidden dangers of partial discharge, providing efficient and comprehensive detection solutions for industries such as power, manufacturing, and petrochemicals. characteristic: 1. Acoustic fault location 128 high-precision MEMS digital microphones, using a spiral array, with ultra-high acoustic detection sensitivity, accurately capture sound sources, and help users accurately detect partial discharge and gas leaks. 2. Abnormal temperature warning Equipped with 640 x 512@12 The μ m high-sensitivity infrared detector responds quickly to temperature differences and has high temperature measurement accuracy. It can quickly identify abnormal temperature areas and provide clear and stable thermal imaging. 3. Modular design of lenses Modular lens design, supports hot swapping, can switch between multiple imaging camera forms, unlocks more detection modes. Free combination modules leverage the advantages of perception fusion to assist users in efficiently completing inspection tasks. 4. Large screen visual experience Equipped with a 10.1-inch ultra large touch capacitive screen, it not only provides a wider visual experience, but also makes touch screen interaction easier and more comfortable. It combines the advantages of low reflectivity, sensitive response, high durability, and resistance to accidental touch. Technical parameters: Microphone array: 128 pieces Sound frequency: 0kHz to 65kHz, adjustable range Sound pressure range: 0~120dB Frame rate: 30Hz Detection mode: partial discharge/leakage Detector type: uncooled vanadium oxide, 7.5~14μm Infrared resolution: 640 × 512@12 μm Super resolution technology: supported, upgraded to 1280 × 1024 NETD： 30mK Infrared frame rate: 50Hz/9Hz Focal length: 13mm/17.7mm Temperature measurement range: supports automatic gear switching:- 40°C~150°C, 0°C~650°C Temperature measurement accuracy: ± 2 ° C or ± 2%, whichever is greater
Introduction: FA series infrared acoustic imaging device, deep fusion of sound image and thermal imaging technology. Equipped with 128 high-precision microphone arrays and 640 × 512 high-resolution infrared detectors, a 10.1-inch touchscreen provides a comfortable viewing experience, and an internal and external battery solution ensures long-lasting battery life. This device has the ability to quickly detect temperature anomalies, accurately locate gas leaks, and identify hidden dangers of partial discharge, providing efficient and comprehensive detection solutions for industries such as power, manufacturing, and petrochemicals.
