- Model NumberF-P4000E
- Brand NameHNFKSSYYQ
- Payment TermsT/T, paypal
Brief introduction:

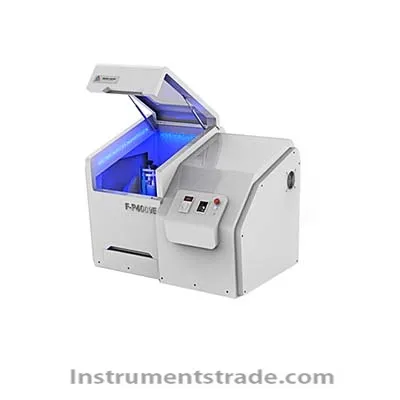

High-energy all-round planetary ball mill machine is based on vertical high-energy planetary ball mill instrument derived increased by 360 ° swivel function of new products, products not only have the vertical high-energy ball mill instrument has the characteristics of the new unique 360 ° rotation function due to the planetary body, samples and grinding ball in ball mill tank get more intense and more comprehensive sports, which can obtain more quickly and more uniform, small sample results, product configuration four 1000 ml or ball mill can use the following volume.
Technical parameters:
Model: F - P4000E
Principle of treatment: impact force | friction force | gravity
Application sample characteristics: fine | medium low hardness | brittle | dry or low viscosity
Processing type: grinding |, mixing |
Maximum injection size: < 10 mm
Sample size range: 0.1-20 um
Maximum volume of treatment: 4000 ml
Maximum rotation speed of ball grinding tank: 800 r/min
Turning speed: 10 r/min (stepless speed regulation)
Transmission: European standard
Planetary disk space motion way: X | Y 360 ° planetary movement
Function: flip control | continuous and intermittent operation | emergency stop | timing | power off memory | overload and dangerous operation protection
Additional function: LED lighting | heat dissipation
Material: tungsten carbide, zirconia, zirconia, |, agate, |, stainless steel, |, MC, nylon, etc
Number of ball grinding cans: 4
Volume of ball grinding tank: 1000 ml
Grinding ball material: tungsten carbide zirconia | | agate | stainless steel and other optional
Grinding method: dry grinding | wet grinding
Electrical description: 100-120v / 200-240v AC, 50-60hz,870W
Power port: gb |, gb |, gb |, etc
Net weight: 242 kg
Dimension (length, width and height) : 1120*685*780 mm
Protection level: IP65
Standard: CE
