EPP110 pour point tester Introduction

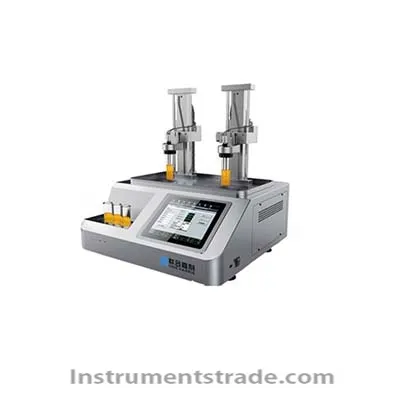

EPP110 automatic pour point tester is designed, manufactured and inspected in compliance with GB / T3535, ISO3016, ASTMD97, and ASTMD5950. It is suitable for measuring the pour point of most petroleum products (fuel oil, lubricants, etc.) Lian Jiali's EPP110 automatic pour point tester is two test baths. Each test bath can independently perform pour point measurement without affecting other test baths. That is, two oil samples can be measured at the same time. The operator can control the instrument through the keyboard, touch screen or mouse. The whole process is automatic, and the flow of the oil sample can be observed during the entire test process. Features
1.EPP110 is composed of two main parts: the test host and the low-temperature cycle refrigerator; the main parts of the instrument are imported materials, and the key components are imported components, making the instrument more stable and reliable.
2.EPP110 fully meets the requirements of GB / T3535. The entire testing process is intuitive and transparent, and it can be tested in accordance with ASTMD5950, which is more scientific and accurate.
3.The test interval can be set by the user according to the situation, and the setting range is 1 ~ 3 ℃, which is more user-friendly;
4.The instrument has functions such as automatic cooling, automatic tilt test, and automatic temperature control;
5.The two test baths are independent of each other; two samples can be tested at the same time without affecting each other;
6.The instrument automatically detects whether an oil sample is put in to prevent misoperation by the user;
7.The test bath has an automatic preheating function. Users can set whether to preheat, preheat time and preheat temperature.
8.The user can set the starting detection temperature, detection frequency, number of detections and alarm temperature as required;
9.The instrument has bath temperature correction and powerful data storage query function. The instrument can store tens of thousands of test results, and can freely query by time, oil sample, tester, etc .;
10.The instrument has USB, RJ45 and RS232 interfaces, and is equipped with Wifi, which can be directly connected to the LISM system. Technical Parameters
Executive standards: GB / T3535, ISO3016, ASTMD97, ASTMD5950
Test bath: two independently controlled baths
Cooling method: external circulation refrigeration
Test range: -59 ～ 45 ℃ (according to the circulation refrigeration system)
Cold bath temperature control range: -68 ～ 45 ℃ (according to the circulating refrigerator)
Temperature control accuracy: ± 0.1 ℃
Repeatability: ≤3 ℃
Reproducibility: ≤6 ℃
Display: 10.4 "color LCD, 800X600
Power: AC220V, 50Hz
Power: 1500W
Dimensions: (length) 645X (width) 660X (height) 800mm
Weight: 45Kg
Introduction
EPP110 automatic pour point tester is designed, manufactured and inspected in compliance with GB / T3535, ISO3016, ASTMD97, and ASTMD5950. It is suitable for measuring the pour point of most petroleum products (fuel oil, lubricants, etc.) Lian Jiali's EPP110 automatic pour point tester is two test baths. Each test bath can independently perform pour point measurement without affecting other test baths. That is, two oil samples can be measured at the same time. The operator can control the instrument through the keyboard, touch screen or mouse. The whole process is automatic, and the flow of the oil sample can be observed during the entire test process.
