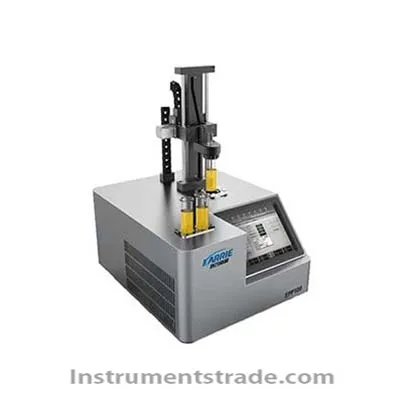

EPP100 automatic single cup pour point tester Introduction: The design, manufacture and inspection of EPP100 automatic pour point tester comply with GB/T 3535, ISO 3016, ASTM D97, and ASTM D5950. It is suitable for determining the pour point of most petroleum products (fuel oil, lubricating oil, etc.). The EPP100 automatic pour point tester is a single test bath. The operator can control the instrument through the keyboard, touch screen or mouse. The entire process is automatic, and the flow of the oil sample can be observed during the entire test process. Features: 1. EPP100 integrates the compressor, and the bath temperature can range from -81°C to 70°C; 2. The main parts of the instrument are all imported materials, and the key parts are all imported parts, which makes the instrument more stable and reliable. 3. Fully meet the requirements of GB/T 3535, the whole test process is intuitive and transparent, and it can be tested according to ASTM D5950, which is more scientific and accurate; 4. The test interval can be set by the user according to the situation, and the setting range is 1～3℃, which is more humane; 5. The instrument has functions such as automatic cooling, automatic tilt test, and automatic temperature control; 6. The test bath has an automatic preheating function, and users can set whether to preheat, preheat time and preheat temperature by themselves; 7. Users can set the start detection temperature, detection frequency, detection times and alarm temperature according to their needs; 8. The instrument has bath temperature correction and powerful data storage and query functions. The instrument can store tens of thousands of test results, which can be queried freely according to time, oil sample, tester, etc.; 9. The instrument has USB, RJ45 and RS232 interfaces, optionally equipped with Wifi, which can be directly connected to the LIMS system. Technical Parameters: Executive standard: GB/T 3535, ISO3016, ASTM D97, ASTM D5950, ASTM D5853 Test bath: 1 Cooling method: compressor refrigeration Test range: -68～45℃ Temperature control range of cold bath: -81～70℃ Temperature control accuracy: ±0.1℃ Repeatability: ≤1℃ Reproducibility: ≤2℃ Display screen: 10.4" color LCD, 800X600 Power supply: AC220V, 50Hz Power: 1500W Dimensions: (length) 500X (width) 550 X (height) 600mm Weight: 45Kg
Introduction: The design, manufacture and inspection of EPP100 automatic pour point tester comply with GB/T 3535, ISO 3016, ASTM D97, and ASTM D5950. It is suitable for determining the pour point of most petroleum products (fuel oil, lubricating oil, etc.). The EPP100 automatic pour point tester is a single test bath. The operator can control the instrument through the keyboard, touch screen or mouse. The entire process is automatic, and the flow of the oil sample can be observed during the entire test process.
