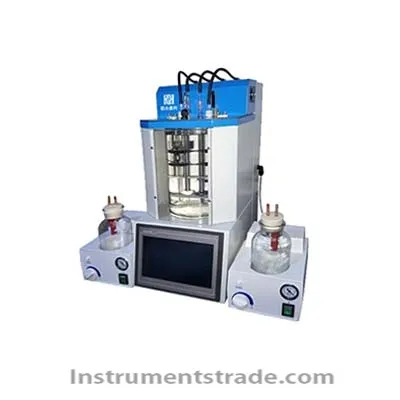

EKV100 Viscosity Tester
Introduction
The EKV100 automatic viscosity instrument is a product that complies with GB / T265-88 and also meets the requirements of ASTMD445D446ISO3104ISO3105. It is used to determine the kinematic viscosity of transparent and opaque liquids, including crude oil, light and heavy fuel oils, lubricants, additives, and waste oil.
Features
Adopt imported PLC (programmable controller) control to replace the traditional single chip microcomputer; strong anti-interference ability, protection grade IP66, effectively avoiding the high humidity in the south to corrode the circuit board, LCD touch screen operation
The measurement process includes: constant temperature, viscosity test, cleaning and drying.
The operator can leave the field instrument after stakeout and can complete all tasks automatically;
The experimental program can be called up, modified at any time, and added infinitely;
The experimental results can be stored for an unlimited number of times, and can be consulted at any time, and the repeatability and reproducibility of data can be compared and calculated multiple times.
The instrument comes with a lighting device, which is convenient for observing the measurement and cleaning of the viscometer during the test.
Built-in powerful self-inspection function system, with automatic fault diagnosis program, more reliable operation;
Refrigeration equipment can be added according to user needs;
Internally designed RS-232C standard interface circuit, which can be connected with PC; computer self-diagnosis program
Technical Parameters
Temperature range: room temperature to 100 ° C
Temperature control accuracy: ± 0.01 ℃
Heating power: main heating 400W, auxiliary heating 600W
Number of test holes: two holes
Power supply: AC220V 1200W
Repeatability: ≤0.01S
Reproducibility: ≤0.02S
Viscosity tube: (standard with two) 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0 (selectable by the user according to the needs of the product type viscometer)
Display: 10 ”display
Input: touch screen keyboard input
Instrument weight: 30Kg
Dimensions: 440X240X640 (mm)
