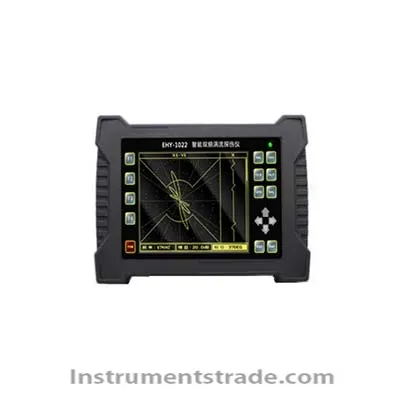

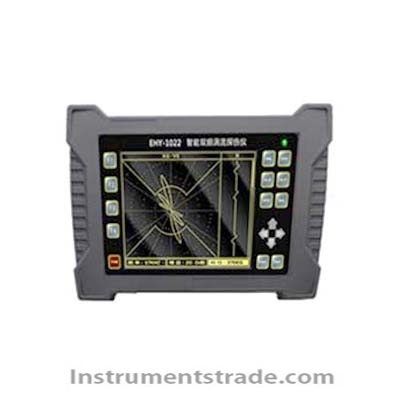

EHY-1022 Intelligent Portable Eddy Current Flaw Detector
Introduction: EHY-1022 intelligent portable eddy current flaw detector adopts advanced digital electronic technology, eddy current technology and microprocessor technology to effectively detect the defects of metal components in real time, distinguish alloy types and heat treatment states, and thickness changes. It is a small intelligent digital eddy current Detector, adjustable phase, gain, test frequency, small size and light weight, easy to carry, built-in rechargeable battery can be tested in the field without power supply. It can effectively suppress interference signals, and the operation is intuitive and simple. The frequency, gain, phase and other parameters of the instrument are preset by professionals. During the actual measurement, the operator can call in the corresponding detection parameters at any time, and then the detection can be carried out. Operators can start work without long-term special training. EHY-1022 is used to inspect the surface of components such as blades and hubs for general defect assessment; it can detect cracks on the inside of holes; various metal parts and ferromagnetic weld crack detection; non-conductive coatings or coatings on conductors Thickness measurement; detection of thickness changes of thin plates; detection of various non-ferromagnetic pipes in service, including cracks, wall thickness, corrosion, etc.; detection of interlayer crevice corrosion of composite materials, such as aircraft multilayer structures, aluminum skins and fuselage Detection of wing joints, etc.; material sorting. Application areas: For metal parts, pipes, structures, welds, metal parts, etc. Features: 1. Smart digital design 2. High-precision, high-efficiency detection 3. New technology, new function, modern design 4. Compact shape, easy to carry 5. Can realize fool-like operation 6. USB 2.0 (Host) connection for output capability 7. Eddy current detection signal playback, analysis, storage, printing functions 8. Adopt military high-brightness EL screen, high quality, high performance and high stability 9. Automatically display calendar, time, battery capacity 10. Easy to operate, real-time screen prompts 11. Built-in rechargeable lithium battery 8000mAH Technical parameter: Number of independent detection frequencies: 2 Frequency range: 50 Hz to 10 MHz, excellent frequency adjustment performance Gain: 0 dB～99 dB, wide gain adjustment Phase: 0～359°, flexible phase rotation Number of intelligent mixing units: 2 Detection speed: >60M/min Detection of the smallest defect: 0.02mm, with high-precision detection capabilities Lift-off height: >3mm, no need to deal with the surface covering layer Probe Drive: 1 to 8 Probe matching: 1 to 4 Digital filter: 0Hz～2KHz bandpass filter, 0～10th order filter Center coordinates: X, Y adjustable Operating language: Chinese, English Charging power supply: 110V～220V Ambient temperature: -20 ~ 60℃ Coordinate system: Cartesian coordinate system, polar coordinate Instrument weight: 2.0KG
