EFPH-3D high precision pH meter Introduction

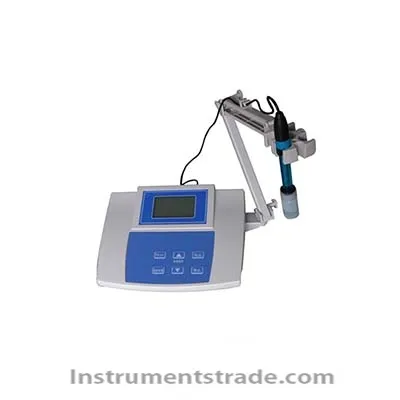

The EFPH-3D pH meter is a digital display pH meter that uses a blue backlit, dual-row digital display LCD that displays pH, temperature or potential (mV) values. The instrument is suitable for the measurement of the pH value and potential (mV) value of the aqueous solution in the laboratory of universities, research institutes, environmental monitoring, industrial and mining enterprises, etc., and the ORP electrode can measure the ORP (oxidation-reduction potential) value of the solution. The electrode potential value of the electrode can be measured by an ion selective electrode. Technical Parameters
Instrument level 0.01
Measuring range pH 0.00~14.00pH;
mV 0～±1400mV
Resolution 0.01pH, 1mV, 0.1°C
Temperature compensation range 0～60°C;
The basic error of the electronic unit is pH±0.05pH;
mV±1% (FS)
Instrument basic error ±0.1pH;
The input current of the electronic unit is not more than 1×10-11 A.
Electronic unit input impedance is not less than 3 × 10 11Ω
Electronic unit repeatability error pH 0.05pH
mV 5mV
Instrument repeatability error is not greater than 0.05pH
Electronic unit stability ±0.05pH±1 words/3h
Dimensions 220×160×65mm (l×b×h)
Weight 0.3kg
Normal use conditions:
a) Ambient temperature: (5 ~ 50) °C
b) Relative humidity: ≤ 85%
c) Power supply: DC6V
d) no significant vibration;
e) There is no external magnetic field interference except the Earth's magnetic field.
Introduction
The EFPH-3D pH meter is a digital display pH meter that uses a blue backlit, dual-row digital display LCD that displays pH, temperature or potential (mV) values. The instrument is suitable for the measurement of the pH value and potential (mV) value of the aqueous solution in the laboratory of universities, research institutes, environmental monitoring, industrial and mining enterprises, etc., and the ORP electrode can measure the ORP (oxidation-reduction potential) value of the solution. The electrode potential value of the electrode can be measured by an ion selective electrode.
