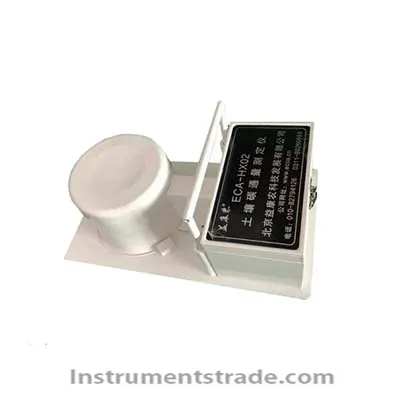

ECA-HX02 Soil Carbon Flux Monitor Introduction: This instrument is used for monitoring soil carbon flux, consisting of a main unit and a breathing chamber. The main unit is used to analyze and record changes in gases, while the breathing chamber is used to collect soil gases. Features: 1-1 Multifunctional: Simultaneously monitor respiratory rate, carbon dioxide concentration, environmental temperature, and other indicators. 1-2 Intelligence: touch screen human-machine interface, Chinese menu, real-time display and storage of measurement process and final results on the screen; 1-3 has two measurement modes: manual and automatic; 1-4 has an automatic internal and external gas circulation system, which facilitates long-term field monitoring. 1-5 Small size, light weight, portable, single person operation, Technical parameters: Working environment: temperature 0-50 ℃, relative humidity 0-100% (no water vapor condensation); Carbon dioxide measurement analysis: dual band non dispersive infrared technology, measurement range 0-5000ppm, precision 1% accuracy; Temperature: thermistor, measurement range: 0-50 ℃, resolution: 0.1 ℃, error ± 0.2 ℃; Power supply: DC6V rechargeable nickel hydrogen battery/AC power; Data storage: 100000 sets
Introduction: This instrument is used for monitoring soil carbon flux, consisting of a main unit and a breathing chamber. The main unit is used to analyze and record changes in gases, while the breathing chamber is used to collect soil gases.
