Model NumberE5000

Brand NameYIMA

Payment TermsT/T, paypal

Instrument Description

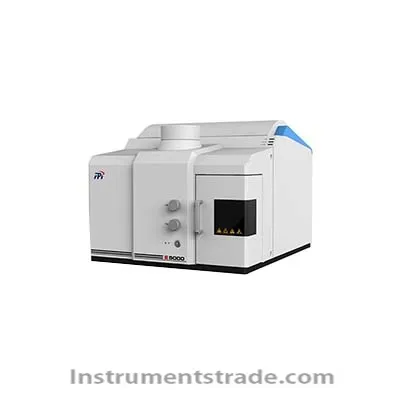

E5000 emission spectrometer with a full spectrum of multi- element analysis , rapid analysis , analysis precision, good stability , analyze the performance reached the international advanced level. As the world 's first full-spectrum desktop powder samples for elemental analysis by direct emission spectrometer , E5000 emission spectrometer with innovative CNC high-power electric arc light, the light source device automatic laser alignment , reliable par type - Runge full spectrum splitting system and CCD array full spectrum measurement technology, while , E5000 emission spectrometer combined with timing analysis , spectral automatic calibration and other advanced technology , the use of solid samples direct injection method , a comprehensive solution to the traditional technical analysis cumbersome , inefficient, and poor accuracy , the spectrum a major breakthrough in the field of elemental analysis .

Features
1. arc emission spectroscopy with the full spectrum of direct-reading spectrometer technologies, a new generation of solid powder analysis
All conventional elements - ( Runge Pa type ) full spectrum of the optical system , can be measured to be analyzed 2. Paschen-Runge
3. Small, compact desktop design to ensure stable and reliable, easy to use and convenient
4. Anti- overflow CCD high speed data acquisition system , high signal to noise ratio , wide dynamic range
5. High -power CNC programmable light , current, voltage, frequency control, provide better analytical methods
6. Multi-chain and monitoring to ensure the safe and reliable operation

7. Automatic electrode laser alignment system
8. The powder samples direct injection , easily and quickly
9. A key excited to get immediate results
10. Built- curve , customers do not need to manually build the line , and effectively improve work efficiency
11. The software is open all the advanced features , providing customers with the perfect method development platform

Technical parameters

Paschen-Runge ( Pa type - Runge ) full spectrum of the optical system
Wavelength range : 190nm ~ 680nm
High-performance multi- array CCD detector with deep UV detection capability
Thermostatic full fixed optical system , without any moving parts
Spectral Range : 190nm-680nm

Programmable CNC arc light
Current, voltage, frequency control, to provide the best analysis of the excitation parameters for different target
Water-cooled laser light automatic alignment system

Based on the ultra-high speed data acquisition and control functions DSP and FPGA technology
Timing analysis technology to achieve a more optimal measuring element content
High-speed Ethernet data transmission

AC 220V ± 20V, 50Hz
The average standby power 100VA
Job stability : 10 ℃ ~ 30 ℃
Humidity: 20% to 80%
Dimensions : 770mm × 625mm × 520mm
Weight: about 80kg

Instrument Description

E5000 emission spectrometer with a full spectrum of multi- element analysis , rapid analysis , analysis precision, good stability , analyze the performance reached the international advanced level. As the world 's first full-spectrum desktop powder samples for elemental analysis by direct emission spectrometer , E5000 emission spectrometer with innovative CNC high-power electric arc light, the light source device automatic laser alignment , reliable par type - Runge full spectrum splitting system and CCD array full spectrum measurement technology, while , E5000 emission spectrometer combined with timing analysis , spectral automatic calibration and other advanced technology , the use of solid samples direct injection method , a comprehensive solution to the traditional technical analysis cumbersome , inefficient, and poor accuracy , the spectrum a major breakthrough in the field of elemental analysis .
