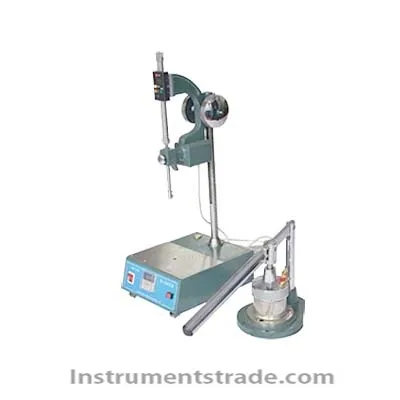

DZY-071 Grease and petroleum grease cone penetration tester Features
This instrument is suitable for detecting the penetration of grease and petroleum grease.
The cone penetration value measured by the instrument can be directly read through the LCD screen, which is intuitive and the error can be as small as one percent).
The flexible and light adjustment and lifting mechanism for the cone can be adjusted coarsely or finely.
Digital setting / control timing time, timing electromagnetic mechanism locks down cone and cone rod.
Steel structure work machine, free working stroke; equipped with full cone and work machine. Technical parameters
①Working power: AC220V ± 10 ％ 50Hz standard 10A plug
②Time setting: 5 seconds (can be set arbitrarily within 0 ～ 60 seconds)
③Measurement range: 0 ～ 78.00mm (780.0 cone penetration)
④Measurement indication value: 0.01mm
Dimensions: 380 × 320 × 550 (mm)
The penetration value measured by DZY-071 Grease and Petroleum Grease Penetration Tester can be directly read through the LCD screen, which is intuitive and the error can be as small as one percent. DZY-071 Grease and Petroleum Grease Penetration Tester is suitable for detecting the penetration of grease and petroleum grease.
