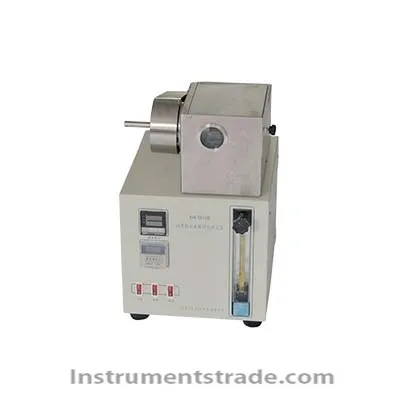

DZY-066 Grease anti-water shower performance tester Features
This instrument is suitable for the ability of grease to resist being washed out of the bearing by water under the specified laboratory conditions at 38 ℃ and 79 ℃
The instrument adopts a desktop structure, heated by a heating tube, and adopts an advanced PID self-tuning temperature control system with digital display temperature control, with an accuracy of ± 0.2 ℃.
The sensor adopts Pt100, which is sensitive to temperature, high resolution, strong anti-interference ability and high temperature measurement accuracy.
The water jet flow rate is controlled by a flow meter, with high measurement accuracy and easy operation. Miniature magnetic circulating pump with low noise and long continuous working time. Technical parameters
Working power supply: AC220V ± 10% 50Hz standard 10A plug
Temperature control range: room temperature ～ 100 ℃
Temperature control accuracy: ± 0.2 ℃
Heating power: 400W
Circulation system: Miniature magnetic circulation pump
Water jet flow rate: 5ml / s ± 0.5ml / s
Working speed: 600r / min ± 30r / min
Sink size: 150X150X150 (mm)
Dimensions: 280 × 360 × 430 (mm)
DZY-066 Grease anti-water leaching performance tester adopts desktop structure, heated by heating tube, adopts advanced PID self-tuning temperature control system, digital display temperature control, accuracy can reach ± 0.2 ℃ DZY-066 Grease anti-water leaching performance tester is suitable for the ability of the grease to resist being washed out of the bearing by water under the specified laboratory conditions at 38 ℃ and 79 ℃.
