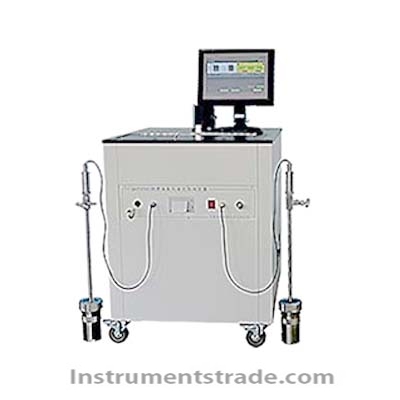

- Model NumberDZY-028Z
- Brand NameDLZNYQYB
- Payment TermsT/T, paypal
Performance characteristics:
* floor all-in-one machine, with four locking universal wheels at the bottom, easy and fast to move.
* embedded single chip microcomputer and micro PLC programmable controller cooperate with each other to form the control system core of the instrument.
* 10-inch LCD touch screen, all-chinese human-computer interaction interface.
* the human-computer interaction interface can be separated from the bath host, which is particularly convenient for placement and operation.
* stainless steel oil bath with drain valve, easy to replace the bath liquid, the oil bath has a thermal insulation layer.
Stainless steel spring seat with locating pin (rotating bracket), driven by metal chain and constant speed motor.
* the agitator motor, together with the agitator blade on the spring seat, can make the temperature of the oil bath uniform throughout.
* the internal pressure of oxygen bomb is monitored by a high-precision pressure transmitter in real time and displayed on the operation screen.
The operator can know the internal pressure condition of the experimental bomb anytime and anywhere.
* the instrument can automatically charge and discharge oxygen (first charge and discharge twice for oxygen air replacement, and then re-charge the oxygen pressure to the required pressure value).
* oxygen can be filled and released manually, and the pressure value inside the test bomb can be adjusted manually.
* only manual input of ambient temperature is required, and the instrument will automatically indicate the pressure to be aerated.
* the instrument automatically records the test time and real-time pressure value, automatically judges the result and records it.
* after the instrument stops the test, it will automatically cut off the heating power, stop stirring, and stop rotating to ensure safety.
Branded 180 ℃ in the metal bath temperature switch, when the bath temperature over 180 ℃, the instrument will automatically cut off the heating power.
Double protection, higher security.
* the rate of oxygen release can be adjusted by the precision valve behind the instrument.
Technical indicators:
* working power supply: AC220V 10% standard 25A plug of 50Hz
* heating power: 2KW * 2
* temperature control point temperature: 150 ℃ and 140 ℃ optional
* temperature control precision: plus or minus 0.1 ℃
* projectile rotation speed: 100r/min 2r/min
* display range of pressure of projectile body: 0kpa ~ 1600kpa
* pressure transmitter accuracy: 2‰
* the bath temperature stability time after putting the projectile into the test: 15min
