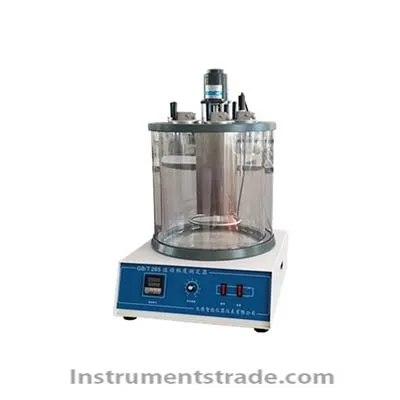

DZY-005A Kinematic Viscometer Features
1.This instrument is suitable for measuring the kinematic viscosity of liquid petroleum products. (Mainly measure the kinematic viscosity at 40 ℃ and 100 ℃)
2.The instrument adopts advanced PID self-tuning temperature control system, the control performance is stable and reliable, the user only needs to set the temperature control point temperature through the instrument, the instrument automatically realizes the fixed point temperature control, digital display, accurate temperature control.
3.Upper and lower structure, the control unit is in the lower part, and the test operation unit is in the upper part. The structure is reasonable and easy to operate.
4.Double-layer glass bath body can not only keep warm but also protect the safety of the operator.
5.Adjustable speed stirring motor, stainless steel stirring blade, stainless steel diversion device to ensure that the bath fluid has small fluctuations and uniform temperature.
6.High-power heating device, rapid temperature rise, small thermal inertia.
7.The bottom of the glass bath is equipped with LED lighting strips to illuminate the capillary tube to make the engraved lines clear and easy to observe during the test.
8.The self-designed and produced viscometer clamp cover is easy and fast to install and disassemble. The clamp is firm during the experiment, and the viscometer can be adjusted to be perpendicular to the horizontal plane.
9.Can simultaneously measure 4 capillary viscometers. Technical parameters
Working power: AC220V ± 10% 50Hz standard 10A plug
Heating power: 2KW
Temperature control range: room temperature ~ 100 ℃
Temperature control accuracy: ± 0.1 ℃
The DZY-005A Kinematic Viscometer uses an advanced PID self-tuning temperature control system. The control performance is stable and reliable. The user only needs to set the temperature control point temperature through the instrument. The instrument automatically realizes the fixed point temperature control, digital display, and accurate temperature control. DZY-005A Kinematic Viscometer is suitable for measuring the kinematic viscosity of liquid petroleum products.
