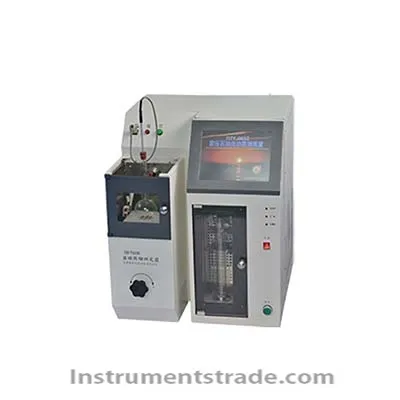

DZY-003Z Automatic distillation tester for petroleum products Introduction
DZY-003Z Automatic distillation tester for petroleum products is suitable for the determination of natural gasoline (stable light hydrocarbons), automotive gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, kerosene, diesel, gas oil and similar diesel fuels. Kinematic viscosity of petroleum products. The instrument is a desktop integrated structure, which requires less space for placement. Features
1. The heating furnace of the instrument can be raised and lowered, and is equipped with a heat-resistant insulated observation window.
2. The instrument is equipped with a 10-inch full-color, high-performance, high-definition LCD touch screen, which is sensitive to touch. Various functions such as instrument operation and data display are concentrated on the screen. The layout adopts humanized design, and each function is clear at a glance.
3. The instrument is equipped with a sample recovery chamber, the temperature of which can be adjusted, the range is: 10 ℃ ～ 50 ℃.
4. The instrument is equipped with a compressor imported from Germany, with high refrigeration efficiency, reliable quality and low noise.
5. The instrument is equipped with a liquid level tracking system consisting of Haydon motors in the United States and KEYENCE photoelectric trackers in Japan. The liquid level judgment is correct and reliable. v6. The instrument is equipped with advanced optical fiber sensors, which can correctly judge the initial boiling point of the sample.
7. The instrument can automatically or manually adjust the heating power of the electric furnace to ensure that the time from the start of heating to the initial distillation point, the recovery rate, the 95% recovery volume to the final boiling point time, etc., meet the requirements of GB / T6536.
8. The cooling bath of the instrument is a fully enclosed structure, and the cooling medium is circulated inside. It only needs to be replaced every three years, which is safe and environmentally friendly, and reduces the experimental cost.
9. The instrument interface can provide various data for users to view and print. Initial boiling point temperature, the time taken to start heating to the initial boiling point, 5% recovered volume to 95% recovered volume The temperature and time used every 5% recovered volume, 95% recovered volume to the final boiling point time, final boiling point temperature .
10. The instrument has the function of displaying the real-time temperature time curve and the real-time temperature of each temperature point (including: the bottom of the electric furnace, the periphery of the condenser tube, the branch tube of the distillation flask, etc.).
11. The instrument can automatically detect the local atmospheric pressure value and automatically correct the corresponding experimental structure.
12. The instrument can perform the test according to the steam temperature limit and the recovery volume limit set by the user. When the limit is reached, the experiment will automatically stop.
13. The instrument is equipped with an inert gas or nitrogen fire extinguishing system. Technical parameters
1. Instrument power: AC220V ± 10% 50Hz standard 10A plug
2. Electric furnace heating power: 1KW
3. Measuring temperature range: room temperature to 400 ° C
4. Measurement accuracy: ± 0.1 ℃
5. Cold bath temperature of condensation tube: 0 ℃ ～ 60 ℃
6. Temperature control accuracy: ± 0.1 ℃
7. Vapor temperature sensor: German imported glass PT100
8. Recovery volume measurement range: 0ml ～ 100ml
9. Recovery volume measurement accuracy: ± 0.1ml
10. Temperature control range of recovery room: 10 ℃ ～ 50 ℃
DZY-003Z automatic distillation tester for petroleum products is equipped with a 10-inch full-color, high-performance, high-definition LCD touch screen, which is sensitive to touch. Various functions such as instrument operation and data display are concentrated on the screen. The layout adopts humanized design, and each function is clear at a glance. DZY-003Z Automatic distillation tester for petroleum products is suitable for the determination of natural gasoline (stable light hydrocarbons), automotive gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, kerosene, diesel, gas oil and similar diesel fuels. Kinematic viscosity of petroleum products. The instrument is a desktop integrated structure, which requires less space for placement.
