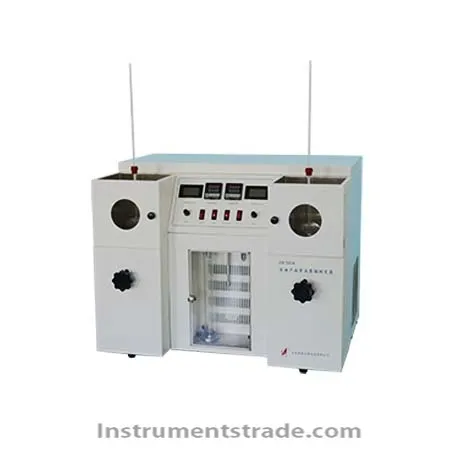

DZY-003DI Distillation Tester for Petroleum Products Introduction
DZY-003DI petroleum product distillation tester is suitable for the determination of distillate fuel oils such as natural gas oils (stable light hydrocarbons), light and middle distillates, spark ignition engine fuels for aviation, aviation gasoline, jet fuel, diesel and kerosene at atmospheric pressure, And the distillation characteristics of naphtha and petrolatum products. Features
1. The instrument adopts advanced PID self-tuning temperature control system, which has high temperature control accuracy (accuracy up to ± 0.1 ℃) and is accurate and stable.
2. The instrument adopts a self-developed closed cooling system with a valve (obtained a national utility model patent, patent number: ZL 2016 2 0116136.3), with a compact layout, which effectively reduces the volume of the cooling system and indirectly reduces the placement of the instrument Required space.
3. The cooling medium of the instrument is in the cooling system, and a closed internal circulation is realized with the help of a magnetic circulation pump, which not only makes the cooling efficiency more efficient, but also effectively reduces the experimental cost 1%, and the cooling medium is almost lossless).
4. There is a liquid level alarm in the cooling bath of the instrument, and the liquid level will send an alarm if it is lower than the limit.
5. The instrument adopts a quartz electric furnace for heating. There is no open flame, flame-proof and explosion-proof, and it is very safe.
6. The position of the heating furnace of the instrument can be adjusted according to the needs, and it is equipped with a heat-resistant and high-temperature observation window, which is convenient for the experimenters to observe.
7. The heating rate of the instrument can be adjusted as required.
8. The instrument is equipped with a recovery chamber and is a dual-row distillation method, which can determine the distillation range of gasoline. Technical parameters
1. Instrument power: AC220V ± 10% 50Hz standard 10A plug
2. Electric furnace heating power: 1KW × 2
3. Heating power of cooling bath: 1KW
4. Temperature control range of condensing tube: 0 ℃ ～ 60 ℃
5. Temperature control range of recovery room: 10 ℃ ～ 50 ℃
Introduction
DZY-003DI petroleum product distillation tester is suitable for the determination of distillate fuel oils such as natural gas oils (stable light hydrocarbons), light and middle distillates, spark ignition engine fuels for aviation, aviation gasoline, jet fuel, diesel and kerosene at atmospheric pressure, And the distillation characteristics of naphtha and petrolatum products.
