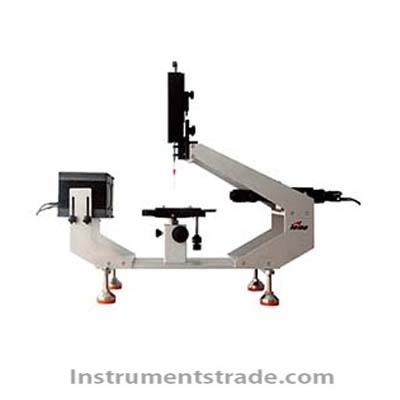

DSA-X standard contact angle measuring instrument Introduction
Standard Contact Angle Measuring Instrument The DSA-X is equipped with an advanced high-resolution high-speed industrial camera with LED cold light source to obtain high-definition images and calculate and fit with the newly optimized software to obtain accurate test data. The instrumentation combines ergonomics with humanized automated sample adjustment, sample stage adjustment, and optical system adjustment to make testing accurate, fast, and efficient. Feature
1. Convenient hardware and software operation, fast and proficient
2.High speed and high resolution industrial camera
3.Manual or software control precision electric injection unit
4.Multiple calculation and fitting methods, automatic baseline recognition
5.Intelligent image recognition, anti-interference
6.Automatic video playback function to accurately select data collection points
7.Multiple format data export function, one-click export experiment report
8.Multiple measurement functions and modules are available
9.Production line quality control, laboratory research and development perfect match Technical Parameters
Contact angle measurement range: 0-180°
Contact angle measurement accuracy: ±0.1°
Table interface tension measurement range: 0-1000mN/m
Table interface tension measurement accuracy: 0.01mN / m
Optical system: 0.7-4.5x, adjustable focal length
Camera speed: video speed 210 images / sec, 130 pixels
Camera angle: ±4° adjustable
Titration accuracy: 0.01μl
Titration system movement: up and down 100mm or so 100mm
Contact angle measurement method: dynamic and static contact angle, rolling angle
Contact angle analysis method: 6 common fitting methods
Surface energy measurement: OWRK method Fowkes method wu method Van Oss
Sample stage size: 100mm × 100mm
Sample table movement: x, y, z three-axis direction 100mm × 100mm × 50mm (optional)
Sample size: 300 x oo x 160 mm (W x D x H)
