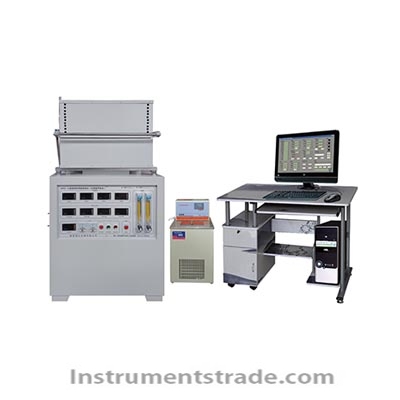

DRS-III High Temperature Thermal Conductivity Tester Introduction: The thermal conductivity of materials is an important parameter indicator for studying their physical properties. In industries such as aviation, atomic energy, building materials, non-metallic materials, etc., it is required to predict or actually measure the thermal conductivity of relevant materials. The DRS series thermal conductivity tester is suitable for testing the thermal conductivity of refractory insulation, ceramic fibers, felt, textiles, boards, bricks and other materials at different temperatures. Complies with the standard YB/T4130-2005 Test Method for Thermal Conductivity of Refractory Materials (Water Flow Plate Method), GB/T17911 Test Method for Thermal Conductivity of Refractory Ceramic Fiber Products, etc. Technical parameters: Test range: 0.001-3W/m.K Sample group quantity: 1-3 pieces Sample group thickness: 10-100mm Sample size: ≤ 230 * 230 * 100 (mm) square body is acceptable, Power Supply: 380V，8KW； Test accuracy: better than 3% Test temperature: The maximum temperature can reach 1350 ℃, and the temperature can be set according to user requirements. Can be connected to a computer for automatic testing, enabling data processing and printing output.
Introduction: The thermal conductivity of materials is an important parameter indicator for studying their physical properties. In industries such as aviation, atomic energy, building materials, non-metallic materials, etc., it is required to predict or actually measure the thermal conductivity of relevant materials. The DRS series thermal conductivity tester is suitable for testing the thermal conductivity of refractory insulation, ceramic fibers, felt, textiles, boards, bricks and other materials at different temperatures. Complies with the standard YB/T4130-2005 Test Method for Thermal Conductivity of Refractory Materials (Water Flow Plate Method), GB/T17911 Test Method for Thermal Conductivity of Refractory Ceramic Fiber Products, etc.
