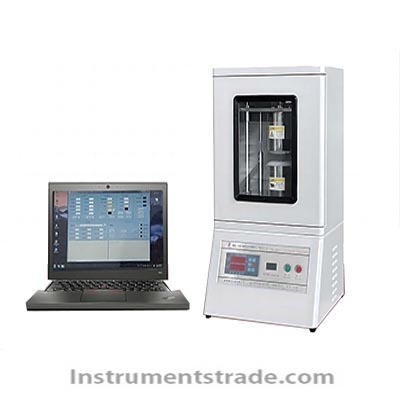

DRPL-VIII high-precision material thermal conductivity tester Introduction: Adopting the internationally popular method of using a heat flux meter to measure thermal conductivity and resistance, coupled with a computer to achieve fully automatic detection and generate experimental reports. The instrument uses a stable hot surface temperature added to one side of the sample, and heat is transferred to the cold surface through the sample. The heat transfer is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it has the characteristics of good measurement accuracy, high reliability, and good repeatability. Especially suitable for measuring low thermal conductivity (accurate to 0.1mW). It can be used for testing plastics, rubber, thermal insulation materials, aerogel plates, vacuum glass, etc., and is widely used in colleges, research institutes, quality inspection, factories and mines. Reference standards: GB/T10295-2008 (Determination of Steady State Thermal Resistance and Related Characteristics of Thermal Insulation Materials by Heat Flow Meter Method) and ASTM E1530, ASTM C518-04 Test Method for Determining Steady State Heat Flux and Heat Transfer Characteristics by Heat Flow Meter Method. Technical parameters: Range and accuracy of thermal conductivity: 0.0001~1W/mk, can measure accurately up to 0.1mw/mk. 0.001-300W/mk. Measurement accuracy: 1%. Sample size: 50 × 50-150 × 150 (mm), with a thickness not exceeding 50mm Measurable materials: test solid materials, powder materials. Measurement time: 15-20 minutes. Hot surface temperature and control: Room temperature~99.9 ℃ (standard configuration), Room temperature~499.9 ℃, higher temperature can be determined according to user requirements. Flat panel heater, bidirectional thyristor control, temperature control accuracy of 0.1 ℃. Cold face temperature and control: 0-99.9 ℃ (standard configuration), -10-99.9 ℃, lower temperature can be determined according to user requirements. The cold surface adopts water cooling to ensure stable temperature (precision constant temperature water tank, adjustable temperature), with a temperature control accuracy of 0.1 ℃. The sample is precisely pressurized and clamped by a computer, with a pressure range of 0-1000N and a resolution of 0.1N. Automatic measurement of sample thickness, 0V50mm, resolution 0.1um. Adopting imported original heat flow meters, the performance is stable and reliable. The entire process adopts computer automatic testing and printing to store experimental data.
Introduction: Adopting the internationally popular method of using a heat flux meter to measure thermal conductivity and resistance, coupled with a computer to achieve fully automatic detection and generate experimental reports. The instrument uses a stable hot surface temperature added to one side of the sample, and heat is transferred to the cold surface through the sample. The heat transfer is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it has the characteristics of good measurement accuracy, high reliability, and good repeatability. Especially suitable for measuring low thermal conductivity (accurate to 0.1mW). It can be used for testing plastics, rubber, thermal insulation materials, aerogel plates, vacuum glass, etc., and is widely used in colleges, research institutes, quality inspection, factories and mines. Reference standards: GB/T10295-2008 (Determination of Steady State Thermal Resistance and Related Characteristics of Thermal Insulation Materials by Heat Flow Meter Method) and ASTM E1530, ASTM C518-04 Test Method for Determining Steady State Heat Flux and Heat Transfer Characteristics by Heat Flow Meter Method.
