Dragon series gantry coordinate measuring instrument

Product ID:CLCDszb024

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDragon series
    Brand NameQDSDCLSB
    Payment TermsT/T, paypal
    Brief introduction:

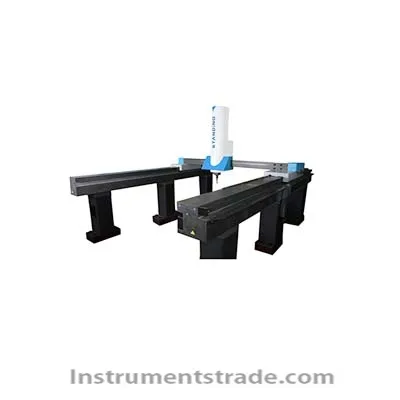

    The structure of the Dragon gantry tri-coordinate measuring instrument realizes the minimum inertia of moving parts while maintaining the maximum rigidity of the structure.
    This three coordinate solves the problems of large parts hoisting difficulty, thermostatic control difficulty and so on, and ends complex problems for customers with the most economical solution.
    This structure facilitates workpiece installation, detection and observation.
    1. The elevated guide rail meets the three-dimensional large measurement space while ensuring high accuracy
    2. The manufacturing precision of each guide rail is high, and the gantry three-coordinate measuring instrument only needs less compensation
    3. Material with good thermal stability and dimensional stability is selected. This measuring machine has excellent performance and high reliability
    4. It can be equipped with a variety of probe, including manual probe and automatic probe
    Application scope:
    Widely used in large sheet metal parts, large castings, wind power equipment, ships, large diesel engines, automobile die industry, train parts and so on.
    Technical parameters:
    X(mm) Y(mm) Z(mm)
    2000~3000 3000~10000 1000~2500
    Accuracy (according to ISO10360-2 standard) MPEE(um) 4.5+5L/1000~10+12L/1000
    MPEP(um) 4~10


  • Brief introduction:
    The structure of the Dragon gantry tri-coordinate measuring instrument realizes the minimum inertia of moving parts while maintaining the maximum rigidity of the structure.
    This three coordinate solves the problems of large parts hoisting difficulty, thermostatic control difficulty and so on, and ends complex problems for customers with the most economical solution.
    This structure facilitates workpiece installation, detection and observation.
