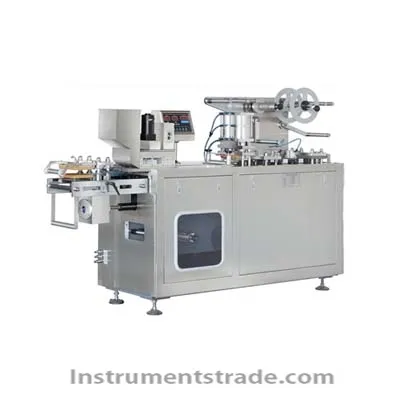

DPP-150 aluminum-plastic packaging machine

Product ID：HZYJqtywjc006

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberDPP-150

Brand NameSHTIANFENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

DPP-150 aluminum-plastic packaging machine
Introduction:
This machine is suitable for industries such as food, pharmaceuticals, medical devices, hardware, and electronic blister sealing packaging.
Technical parameters:

Punches frequency：	10-35times/min
Production capacity：	1200-4200plates/hour( two plates one time)
Max. forming area and depth：	130x100(standard thickness≤15mm) Max. depth 26mm
Stroke range：	50-120mm( can be designed as per user’s required)
Standard plate size：	80x57mm ( can be designed as per user’s required)
Clean compressed air：	0.4∽0.6Mpa
Air compressed capacity：	≥0.3m3/min
Total power supply：	380V 50HZ 3.8kw
Main power：	1.5KW
PVC hard film：	（0.15∽0.5）×150mm
PTP Aluminum film：	（0.02∽0.035）×150mm
Dialysis paper：	（0.02∽0.035）×150mm
Mould cooling：	Tap water or recycling water
Overall dimension：	2315×635×1405mm（L×W×H）
Net Weight：	820KG
Gross Weight：	890KG
Overall Dimension：	2500×800×1780mm（L×W×H）
Noise：	<75dB
