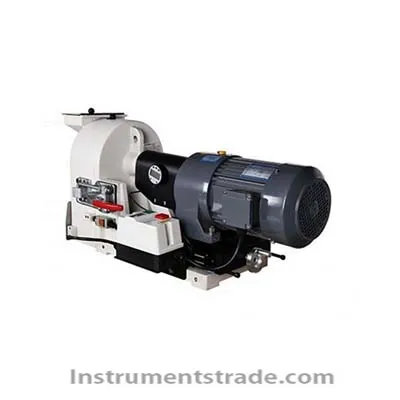

DP100 disc grinder Introduction: The DP100 disc grinder is rugged and durable, suitable for pre-comminuted and finely pulverized solid and brittle solid materials. This instrument can grind samples to less than about 100 microns in one step (depending on the material) The DP100 disc grinder grinds the sample by the pressure and friction generated between a rotating disc and another fixed disc. The sample enters the grinding chamber and is pre-pulverized in the middle of the disc. It is transferred to the outer edge of the disc by centrifugal force and further finely pulverized. The ground sample falls through the gap of the grinding disc into the sample receiving container. Applications: Sample properties: hard, brittle Typical samples: concrete, construction waste, granite, gypsum, dry soil samples, sedimentary silt, quartz, coal, coke, lime mud, refractory clay, glass, dental ceramics, etc. Features: 1. Easy to operate, easy to clean 2. Grinding disc has a long service life 3. A variety of grinding discs are available 4. The gap of the grinding disc is continuously adjustable 5. Large sample processing capacity 6. Sample feed size is large, up to 20 mm 7. The sample processing efficiency is high, and a small discharge size can be achieved in a short time. 8. Dust interface design to prevent sample powder from polluting the environment 9. Digital display adjustment disc spacing, high repeatability Technical Parameters: Injection size: <20 mm Sample size: <100 microns Speed: 470 rev / min Grinding disc intermittent width adjustment: 0.1~5 mm Digital display accuracy: 0.01 mm Rated power: 1.5 kW Rated voltage: 380 volts, 50 Hz (three-phase AC) Instrument size (horizontal * vertical * height): 410 * 880 * 420 mm Package size (horizontal * vertical * height): 600 * 1160 * 625 mm Instrument weight: 136 kg
Introduction: The DP100 disc grinder is rugged and durable, suitable for pre-comminuted and finely pulverized solid and brittle solid materials. This instrument can grind samples to less than about 100 microns in one step (depending on the material) The DP100 disc grinder grinds the sample by the pressure and friction generated between a rotating disc and another fixed disc. The sample enters the grinding chamber and is pre-pulverized in the middle of the disc. It is transferred to the outer edge of the disc by centrifugal force and further finely pulverized. The ground sample falls through the gap of the grinding disc into the sample receiving container. Applications: Sample properties: hard, brittle Typical samples: concrete, construction waste, granite, gypsum, dry soil samples, sedimentary silt, quartz, coal, coke, lime mud, refractory clay, glass, dental ceramics, etc.
