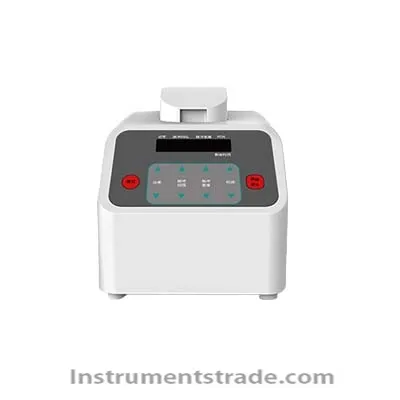

DNU-1020 dry non-contact ultrasonic crusher

Product ID:SHGCxbps069

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDNU-1020
    Brand NameNINGBOXINZHI
    Payment TermsTT,PAYPAL
    DNU-1020 dry non-contact ultrasonic crusher

    Introduction:
    The DNU-1020 dry non-contact ultrasonic crusher is specially designed for pre-treatment of trace samples in rapid detection scenarios, solving the pain points of classic probe type ultrasonic crushing. It does not touch the sample and does not require complex installation and operation, which can achieve rapid sample processing.
    The product achieves non-contact ultrasound in a sealed sample tube through a bottom ultrasound module, and uses a semiconductor refrigeration module to control the low temperature throughout the entire working process to ensure the activity of some target substances. It is suitable for small volume wall/membrane breaking experiments of various cells and bacteria to obtain proteins, nucleic acids, and intracellular functional substances. After processing the sample, it can be directly used for nucleic acid amplification, probe hybridization, and other experiments.
    Features:
    1. High extraction rate: Special mechanical design, more efficient energy transmission;
    2. Ensure the activity of biological samples: semiconductor refrigeration, low-temperature operation throughout the process;
    3. Fast processing speed: ideal results can be achieved within two minutes with appropriate samples
    4. High safety: non-contact non-destructive operation, without the risk of flying mist diffusion;
    5. Portable and convenient: The device is miniaturized and easy to operate;
    6. Strong adaptability: After sample processing, it can be applied to various experiments such as amplification, purification, and probe detection.
    Technical parameters:
    Model: DNU-1020
    Temperature range: 8-12
    Sample flux: 1
    Operation control: button control
    Working volume: 500ul-1000ul
    Display method: LCD
    Applicable consumables: 2.0ml ultrasound sample tube
    Storage data: 99 sets
    Ultrasonic frequency: 20KHZ
    Power supply: 200-240V/50-60Hz
    Ultrasonic power: maximum 30W (adjustable in 10 levels)
    Operating environment: 15-30 , relative humidity ≤ 70
    Timing: 1-900S
    Overall power: 80W
    Temperature control method: Parcel refrigeration
    Overall dimensions and weight: 155mm * 208mm * 193mm, 2.6kg

  • Introduction:
    The DNU-1020 dry non-contact ultrasonic crusher is specially designed for pre-treatment of trace samples in rapid detection scenarios, solving the pain points of classic probe type ultrasonic crushing. It does not touch the sample and does not require complex installation and operation, which can achieve rapid sample processing.
    The product achieves non-contact ultrasound in a sealed sample tube through a bottom ultrasound module, and uses a semiconductor refrigeration module to control the low temperature throughout the entire working process to ensure the activity of some target substances. It is suitable for small volume wall/membrane breaking experiments of various cells and bacteria to obtain proteins, nucleic acids, and intracellular functional substances. After processing the sample, it can be directly used for nucleic acid amplification, probe hybridization, and other experiments.
