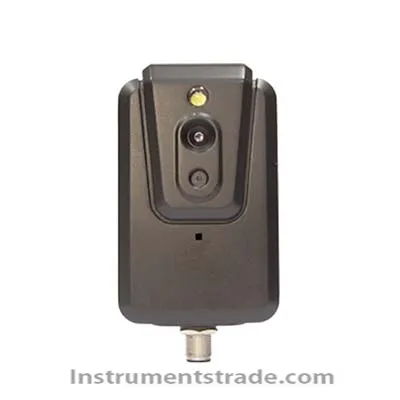

Project | DM10 | DM10-L | |
Prober | Type | Uncooled focal plane microthermal type | |
Image element | 160x120 | 100×100 | |
wavelength coverage | 8-14um | ||
Heat sensitivity | 0.08℃@30℃ | 0.08℃@30℃ | |
Camera lens | Angle of field | 60°x45° | 37°x37° |
Minimum focal length | 0.2m | ||
Focusing mode | Fixed focal length | ||
Image performance | spatial resolution | 6.5mrad | |
Visible light fusion | Multi-band image fusion technology, built-in LED lamp | ||
Image display | Palette | Six color palette options (iron red, white hot, black hot, low contrast rainbow, cold metal, amber) | |
Measure | Temperature range | -20℃~ +150℃ | |
Temperature measurement accuracy | Reading range of ±2 ℃ or ±2%, large value | ||
Temperature measurement and correction | Voluntarily | ||
Measurement pattern | 6 moveable points, 6 removable regions, maximum temperature, minimum temperature, mean temperature, temperature alarm | 3 removable points, 3 removable regions, highest temperature, lowest minimum temperature, mean temperature, temperature alarm | |
Emissivity correction | Fixed emissivity 0.95 | ||
Setting function | Date / time / format, temperature unit C / H / K, language, network parameters | ||
Image storage | Image storage | Automatic H.264 video storage and JPEG format photo storage can be set up when the front end meets the alarm condition. | |
Memory card | Built-in TF memory card | No | |
Power supply system | External power supply | External 12V power supply | |
power dissipation | ≤3.5W(Normal working at 25 ℃) | ||
Enviromental parameter | Working temperature | -15℃~+50℃ | |
Storage temperature | -40℃~+70℃ | ||
Humidity | ≤95% Non-condensing | ||
Levels of protection | IP54 | ||
Impact test | 25G, IEC68-2-29 | ||
Anti-vibration test | 2G, IEC68-2-6 | ||
Safe code | Electromagnetic compatibility | Comply with CE certification requirements | |
Hazardous substance control | Meet the requirements of RoHS | ||
Physical characteristics | Outline dimension | 110(L)×70(W)×30(H)mm | |
Weight | 150g | ||
Joggle | Fixed interface | M3 thread opening | |
Network | 100m port, supporting standard TCP/IP,ONVIF and other protocols | ||
after end | Software | WEB browsing, providing SDK, for customer development integration |
