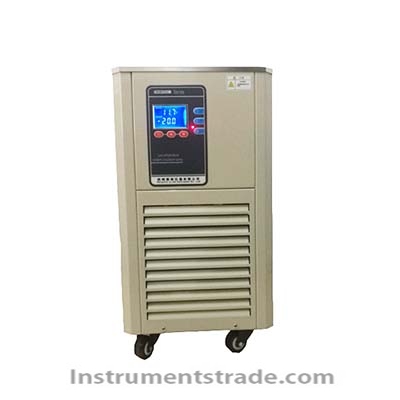

DLSB-5/30 low temperature coolant circulation pump

Product ID:SHGCxhb034

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameHZGYYQ
    Payment TermsT/T, paypal
    Model NumberDLSB-5/30
    Brief introduction:
    Hangzhou heung rain instrument dlsb-5/30 low-temperature coolant circulation pump rotating steam cooling equipment manufacturer direct-selling air-cooled fully enclosed compressor unit refrigeration, microcomputer intelligent control refrigeration system automatic opening, refrigeration system with delay, overheating, over current and other multiple protection devices.
    Features:
    1. Air cooled fully closed compressor unit refrigeration. The microcomputer intelligent control refrigeration system is automatically turned on.
    2. The circulating pump can output the cooling liquid in the tank, cool the experimental vessel outside the thermostat or set up the second thermostat field.
    3. The microcomputer is equipped with the function of timed shutdown, which can be set at any time within 0 to 100 hours.
    4, with double window, red, green two color LED display temperature value and temperature measurement, display resolution 0.1 , the microcomputer can be fixed temperature measurement deviation, the digital display precision of 0.1 .
    5. With the function of microcomputer software lock, the set value of each parameter of the system can be locked. Irrelevant personnel cannot change the set parameters.
    6. All the above operations are completed by pressing and touching the soft key on the computer intelligent control instrument. The operation is simple.
    7. The product is easy to use and can work continuously.
    Technical parameters:
    Model: DLSB - 5/30
    Available reaction kettle (rotary steam) : 1-5L
    Flume volume (L) : 5
    Tank size (mm) : 220 * 180
    Coil diameter (mm) : 200
    Opening size (mm) : 195
    Temperature range: room temperature 30 to -
    Ambient temperature: 5-25
    Ambient relative humidity :(60-80%) ventilation
    Lowest no-load temperature: - 32
    Power supply: 220V plus or minus 10% 50HZ
    Refrigerating capacity (W) : 2653-672
    Instrument temperature control range: - 150 to 100
    Temperature control precision () : 0.5 mm
    Sensor: PT100
    Circulating pump power (w) : 100
    Head (m) : 4-6
    Flow (L/min) : 20
    Pressure (Mpa) : 2
    Refrigeration mechanism: it adopts the imported fully enclosed compressor
    : refrigerant R22
    Circulating pump: special pump with full seal and no leakage
    Oil inlet and outlet: 4 # (lower inlet and higher)
    Temperature control: digital setting, digital display
    Display the temperature resolution: within the scope of the temperature control set arbitrary, zui small display value 1
    Safety protection: leakage, overload circuit breaker, overload relay holding line, freezer protection timer, high pressure switch of circulating pump heat protector, temperature regulation, self-diagnosis function
    Condenser coil: copper (nickel plated)
    Body material: spray - plastic anti - corrosion
    Overall machine size (mm) : 510*345*650
    Weight (KG) : 53
