1 Sales DECO-PBM-H-0.4L Laboratory Horizontal Planetary Ball Mill,Manufacturer
Position: Home > > Industry specific instrument > Drug testing instrument > Drug grinding machine > DECO-PBM-H-0.4L Laboratory Horizontal Planetary Ball Mill

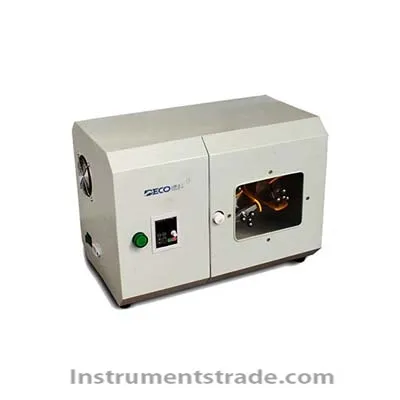

DECO-PBM-H-0.4L Laboratory Horizontal Planetary Ball Mill

Product ID:HZYJywym006

Price: Please inquire PDF Format
Supply Ability:200SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDECO-PBM-H-0.4L
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction
         DECO-type planetary high-energy ball mill "DECO-PBM-H-0.4L" is suitable for laboratory fast, efficient and accurate sample development, mixing, homogenization, it is a small size, low noise, Comprehensive, grinding fine, grinding fast small grinding equipment, in the chemical, medical, food, beauty, metallurgy, ceramics, glass, scientific research, teaching and other fields have been widely used. Horizontal planetary high-energy ball mill can be configured with 4 0.05L ball mill or 4 0.1L ball mill.
         In the planetary ball mill, with the grinding ball and the sample of the ball mill in the planetary disk under the high-speed movement itself is also for high-speed reverse rotation, between the sample and the grinding ball in the ball with the ball inside the continuous collision, friction Of the energy, this huge energy makes the sample to achieve a good crushing effect; DECO Deco planetary high-energy ball mill grinding time is short, the material up to nano-scale ultrafine particle size;
    Features:
    Grinding grinding time is short, the material size and fine precision;
    Ball mill tank operation, effectively prevent the sample sink, grinding more uniform;
    Repeat grinding consistency is high;
    Optional ball mill can be a wide range of materials, grinding materials can be a wide variety;
     Four working positions, each time can be polished up to 4 different kinds of different quality materials;
     Under the same conditions, the accuracy of the samples per batch of each jar is high;
    With reverse, positive and negative alternating operation, Promise speed, timing, intermittent operation, security, power memory, data storage and many other features;
     Technical indicators:
    Station (P): 4
    Name: Light Planetary Ball Mill - Horizontal
     Speed ​​ratio: 2: 1
    Model: DECO-PBM-H-0.4L
    Rotation speed (r / min): 1100
    Yield (L): 200 ml / 400 ml
     Rated voltage (v): 220
    Structure: planetary
     Rated power (kw): 0.25
    Grinding method: dry / wet / vacuum grinding
     Frequency (Hz): 50
    Loading and unloading method: intermittent
    Continuous running time (h): 99
    Transmission: gear drive
    Net weight (kg): 32
    Speed ​​control mode: Promise frequency control
    Size (mm): 500 * 300 * 350 (L * W * H)
    Feeding size (mm): 10
     Ball mill material: stainless steel / nylon / zirconia / agate and so on
    Material size (μm): 0.1
    Ball mill volume: 0.05L / 0.1L


  • Introduction
         DECO-type planetary high-energy ball mill "DECO-PBM-H-0.4L" is suitable for laboratory fast, efficient and accurate sample development, mixing, homogenization, it is a small size, low noise, Comprehensive, grinding fine, grinding fast small grinding equipment, in the chemical, medical, food, beauty, metallurgy, ceramics, glass, scientific research, teaching and other fields have been widely used. Horizontal planetary high-energy ball mill can be configured with 4 0.05L ball mill or 4 0.1L ball mill.
         In the planetary ball mill, with the grinding ball and the sample of the ball mill in the planetary disk under the high-speed movement itself is also for high-speed reverse rotation, between the sample and the grinding ball in the ball with the ball inside the continuous collision, friction Of the energy, this huge energy makes the sample to achieve a good crushing effect; DECO Deco planetary high-energy ball mill grinding time is short, the material up to nano-scale ultrafine particle size;
