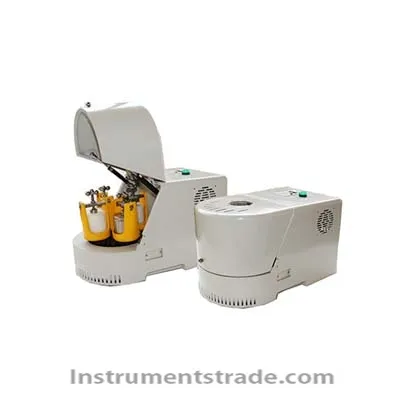

DECO 0.4L nano-sized small ball mill

Product ID:HZYJywym005

Price: Please inquire PDF Format
Supply Ability:200SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDECO 0.4L
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
         DECO-PBM-V-0.4L "is suitable for laboratory rapid, efficient and accurate sample development, mixing, homogenization, it is a small size, low noise, strong control, full-featured, Grinding, fine grinding grinding equipment, in the chemical industry, medical, food, beauty, metallurgy, ceramics, glass, scientific research, teaching and other fields have been widely used. DEOC Deco Planetary High Energy Ball Mill can be configured with 4 0.05L or 0.1L ball jars.
          In the planetary ball mill, with the grinding ball and the sample of the ball mill in the planetary disk under the high-speed movement itself is also for high-speed reverse rotation, between the sample and the grinding ball in the ball with the ball inside the continuous collision, friction Of the energy, this huge energy makes the sample to achieve a good crushing effect; DECO Deco planetary high-energy ball mill grinding time is short, the material up to nano-scale ultrafine particle size. DECO Deco planetary high-energy ball mill has become the current domestic laboratory powder development equipment, one of the most commonly used products.
    Features:
    1 grinding grinding time is short, the material size and fine precision;
    2 repeat grinding consistency is high;
    3 optional ball mill can be a wide range of materials, grinding materials and diverse types;
    4 four working positions, each time up to four different types of grinding, different quality materials;
    5 under the same conditions, each batch of each jar grinding sample accuracy of the high consistency;
    6 with reverse, positive and negative alternately running, Promise speed, timing, intermittent operation, security, power memory, data storage and many other features;
    Technical indicators:
    Station (P): 4
    Name: Planetary High Energy Ball Mill - Vertical
     Speed ​​ratio: 2: 1
    Model: DECO-PBM-V-0.4L
    Rotation speed (r / min): 1100
    Yield (L): 0.4L
    Rated voltage (v): 220
    Structure: planetary
    Rated power (kw): 0.25
    Grinding method: dry / wet / vacuum grinding
    Frequency (Hz): 50
    Loading and unloading method: intermittent
    Continuous running time (h): 99
    Transmission: gear drive
    Net weight (kg): 32
    Speed ​​control mode: Promise frequency control
    Size (mm): 502 * 300 * 296 (L * W * H)
    Feed particle size (mm): 15
    Ball mill material: stainless steel / nylon / zirconia / agate and so on
    Material size (μm): 0.1
    Ball mill volume: 0.05L / 0.1L


  • Introduction:
         DECO-PBM-V-0.4L "is suitable for laboratory rapid, efficient and accurate sample development, mixing, homogenization, it is a small size, low noise, strong control, full-featured, Grinding, fine grinding grinding equipment, in the chemical industry, medical, food, beauty, metallurgy, ceramics, glass, scientific research, teaching and other fields have been widely used. DEOC Deco Planetary High Energy Ball Mill can be configured with 4 0.05L or 0.1L ball jars.
          In the planetary ball mill, with the grinding ball and the sample of the ball mill in the planetary disk under the high-speed movement itself is also for high-speed reverse rotation, between the sample and the grinding ball in the ball with the ball inside the continuous collision, friction Of the energy, this huge energy makes the sample to achieve a good crushing effect; DECO Deco planetary high-energy ball mill grinding time is short, the material up to nano-scale ultrafine particle size. DECO Deco planetary high-energy ball mill has become the current domestic laboratory powder development equipment, one of the most commonly used products.
