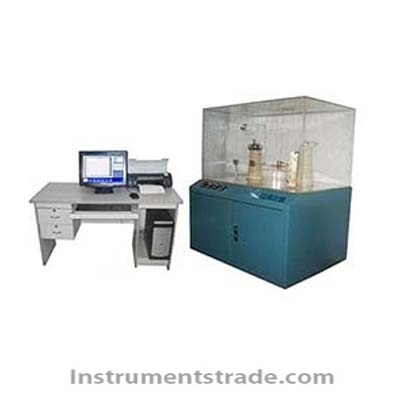

Brief introduction: The breakdown voltage tester Meet GB1408-2006 GB/T1695-2005 GB/T3333 GB12656 and ASTM D149 standards. Mainly applied to solid insulation materials such as plastics, films, resins, mica, ceramic, glass, insulating paint such media under power frequency voltage or dc voltage breakdown strength and withstand voltage test of time. Features: 1. Adopt computer control 2. The test process dynamically create the test curve, the curve of the test can be superposition of a variety of color contrast, local amplification, curve on any section of the area can be amplified analysis. 3. Can be edited on the test data to modify, flexible to apply; 4. The test conditions and test results data can be automatically stored; 5. Test report format flexible, suitable for different requirements of different users. Technical indicators: The input voltage: AC 220 V Output voltage: 50 kV AC 0 -; DC 0, 50 kV Electric capacity: 2 KVA High pressure sizing: 0-5 kv; 0 to 10 kv; 0-20 kv; 0-50 kv The breakdown voltage: 0 to 50 kv Voltage measurement accuracy: 2% or less Test voltage: 0 to 50 kV continuous adjustable Test method: dc test, ac test Booster way: 1, 2, ladder booster 3 uniform booster, withstand voltage test Over current protection device: when the sample breakdown within 0.1 S to cut off the power supply. Leakage current choices: 1-30 mA.
Brief introduction: The breakdown voltage tester Meet GB1408-2006 GB/T1695-2005 GB/T3333 GB12656 and ASTM D149 standards. Mainly applied to solid insulation materials such as plastics, films, resins, mica, ceramic, glass, insulating paint such media under power frequency voltage or dc voltage breakdown strength and withstand voltage test of time.
