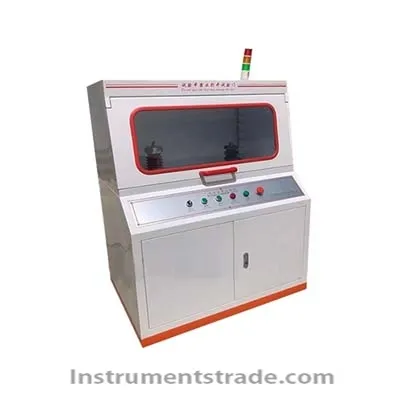

DDJ-50KV voltage breakdown strength tester Introduction: The voltage breakdown strength tester is mainly suitable for testing the breakdown strength and voltage resistance of solid insulation materials (such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, insulation paints, and other insulation materials and components) under power frequency voltage or DC voltage. Technical parameters: Electrical capacity: 5KVA, 10KVA, 20KVA Output voltage: AC/DC-20KVAC/DC-50KVAC/DC-100KV Input voltage: AC-220V/50HZAC-380V/50HZ Boosting rate: 0.1KV/S-5KV/S can be manually set Boosting method: uniform boosting/gradient boosting/withstand voltage test Breakdown judgment stop: voltage judgment stop/current judgment stop Test medium: air test/oil bath test/high temperature test Data collection: photoelectric isolation line, strong anti-interference ability Voltage accuracy: ≤ 1.5% Leakage current: 0-100mA sensor range Voltage sensor: 0-100V sensor range Electrode specifications: Sheet electrodes: 2 pieces with a diameter of 25mm and 1 piece with a diameter of 75mm. Electrodes can be customized according to requirements Experimental discharge: electric automatic discharge Electrode lifting: manual placement/automatic lifting. Automatic lifting is optional Test oil tank: length, width, and height -300mm * 150mm * 200mm. There is a suspended bracket inside the tank for easy replacement of samples Experimental lighting: built-in lighting fixture Experimental exhaust: built-in exhaust fan Test indication: Multi color tower light for host integration test, indicating the test status Test door: Pneumatic rod test door/sliding door. The sliding door is specifically designed for automatic lifting electrodes Safety protection: Overvoltage protection/Overcurrent protection/Short circuit protection/Leakage protection Working environment: Room temperature, humidity ≤ 65% Host dimensions: -1600mm * 850mm * 1700mm Test space dimensions: -7500mm * 600mm * 800mm Test door observation window glass door size: - length and width 800mm * 300mm large window for easy observation Equipment weight approximately: 300KG
Introduction: The voltage breakdown strength tester is mainly suitable for testing the breakdown strength and voltage resistance of solid insulation materials (such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, insulation paints, and other insulation materials and components) under power frequency voltage or DC voltage.
