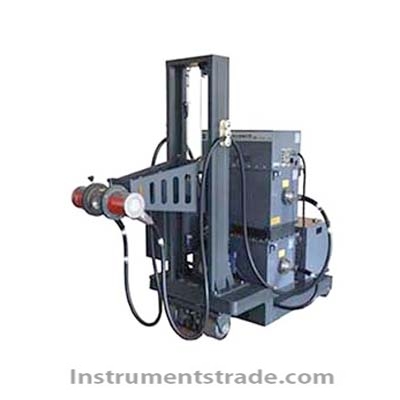

DDHR mobile high frequency constant pressure X-ray flaw detector Introduction: High-frequency mobile X-ray machine and control system: Through the CPU to fully control the system operation, it can realize the rapid self-diagnosis function and judge various faults of the system. With ray tube working time record; equipped with automatic training machine program and self-designed program; kV, mA, door machine interlock, external cooling flow, temperature and other protection; high voltage on, off, graphic, audible alarm prompt; support fully automatic Training machine and other functions. This system needs to be composed of controller, X-ray tube, high-voltage cable, high-frequency high-voltage generator, cooler, and carriage. Technical Parameters Frequency: 40 kHZ kV adjustment range: 30-450kV; minimum step size: 0.1kV; continuously adjustable. kV stability: ±0.05% Tube current adjustment range: continuously adjustable: 0.5-10.0mA (large focus); minimum step size: 0.01mA 0.5-3.0mA (small focus) Tube current at maximum tube voltage: 10 mA (large focus), 3 mA (small focus)
Introduction: High-frequency mobile X-ray machine and control system: Through the CPU to fully control the system operation, it can realize the rapid self-diagnosis function and judge various faults of the system. With ray tube working time record; equipped with automatic training machine program and self-designed program; kV, mA, door machine interlock, external cooling flow, temperature and other protection; high voltage on, off, graphic, audible alarm prompt; support fully automatic Training machine and other functions. This system needs to be composed of controller, X-ray tube, high-voltage cable, high-frequency high-voltage generator, cooler, and carriage.
