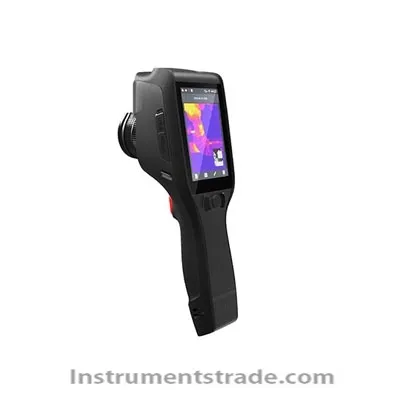

D series intelligent infrared thermal imager

Product ID：CLWDhwrx017

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
Request QuoteAdd To Cart
share:
  • Product Introduction
  • Consulting
  • Model NumberD series
    Brand NameWHGDZGKJ
    Payment TermsT/T, paypal
    Brief introduction:
    D series intelligent infrared thermal imager is simple in appearance, compact and portable, in line with ergonomic design. The 4-inch screen is highlighted, and the menu navigation interface is easy for users to operate. Professional tips are provided for each step, enabling first-time users to become experts. With a built-in high brightness lamp, you can easily take a clear contrast image between visible light and infrared. MIF intelligent image processing technology helps the detection work to be more efficient and accurate.
    The new D series can change the lens at any time as required, and is an ideal testing tool for industrial temperature detection, electric power detection, equipment maintenance and building diagnostic applications.
    Product features:
    1. Ergonomic design.
    • ergonomic design, comfortable to handle, convenient to hold for a long time;
    • the appearance is delicate, the inner is firm and has passed the 2-meter drop resistance test;
    • it weighs about 800g and is light and portable.
    2, 4 "highlighting touch screen, easy to operate;
    • a 4-inch high capacitance touch screen with 800x480 resolution makes observation and analysis more convenient;
    • the screen is adjustable in brightness and still clear in the outdoor sun;
    • the android system and the menu navigation interface make all operations available on the touch screen;
    • good human-computer interaction design and excellent user experience.
    3. Built-in wi-fi module on android platform.
    • open Android operating system with powerful native analysis functions;
    • wireless connection between mobile terminals and products via wi-fi to achieve multi-screen control;
    • share infrared images taken in real time, analyze and export and print infrared reports in real time.
    4. Adapt to various scenarios.
    • three models -- 192*144 and 384*288, available in manual and electric zoom options;
    • four image modes -- full infrared, full visible light, in-painting, MIF -- four image display modes;
    • clip-on lens -- the lens can be changed rapidly according to different occasions, with high temperature, long focus and wide Angle.
    • large capacity battery -- capable of 4-hour long standby, with two batteries included as standard.
    Technical parameters:
      D192F D384F D192M D384M D384A
    Image and optics
    Infrared resolution 192×144 384×288 192×144 384×288 384×288
    NETD 50mk 45mk 50mk 45mk 40mk
    Viewing Angle 37.8°×28.8° 28.4°×21.5° 37.8°×28.8° 28.4°×21.5° 35°×27°
    Minimum imaging distance 1m 1m 0.5m 0.5m 0.4m
    Focal length 7mm/F1.1 19mm/F1.0 7mm/F1.1 19mm/F1.0 15mm/F1.1
    Spatial resolution 3.45mrad 1.29mrad 3.45mrad 1.29mrad 1.60mrad
    Lens to identify No Automatic/manual No
    Infrared frame frequency 25HZ
    Use only Fixed focus hand movement (HM) Electric / automatic
    Digital variable times 1.1~4
    Prober
    Detector type Uncooled vanadium oxide / 8G 14 μ m
    Pixel size 25μm
    Optional lens
    wide-angle lens / / / 57°×45°/8.8mm/F1.0/0.3m/2.65mrad /
    telephoto lens / / 14.4°×10.8°/19mm/F1.0/1m/0.65mrad 13.7°×10.3°/40mm/F1.2/1m/0.62mrad /
    High temperature lens / / Yes,650℃~1500℃ Yes,650℃~1500℃ /
    Image display
    Display screen 4-inch high-highlight LED touch screen, 480 x 800,24 bits
    Image pattern Infrared, visible light, MIF, PIP
    Thermometric
    Temperature measurement range -20℃~350℃ -20℃~150℃，100℃~650℃，650℃~1500℃ -20℃~150℃，100℃~650℃
    Temperature measurement accuracy Plus or minus 2 ℃ or take great value plus or minus 2%, the environment temperature 15 ℃ ~ 35 ℃, the target temperature above 0 ℃
    Temperature measurement area 5 temperature measurement points, 2 temperature measurement lines and 5 temperature measurement areas
    Automatic high/low temperature tracking Full-screen tracking of the highest temperature and lowest temperature;
    Call the police The object is tracked at the highest temperature and lowest temperature
    The palette Eight (White Heat, lava, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2)
    Memory
    Photo storage Native and TF card, JPG, with temperature data
    No temperature information video is stored H.264, 25HZ frame rate, can record audio information synchronously
    Video with temperature information stored Irgd, frame rate 12HZ, this machine can be played back or turned on by PC infrared analysis software. Temperature analysis can be conducted and audio information cannot be recorded synchronously
    Raw video streaming Yes, it can be transmitted to PC (infrared analysis software) or mobile (Iphone or android phone) via USB or WIFI.
    Visible light
    Visible light Resolution 500W (optionally store 500W or 640 480pixels); fixed focus; Field of view 25 °x 19 °; Lighting
    Joggle
    External interface MICRO USB 2.0 MICRO HDMI, power supply (12V), TF card (standard 16G, maximum support 32G); equipped with WiFi, laser, Bluetooth
    Power supply system
    Battery type Rechargeable lithium battery (7.4V), working time ≥ 4H; unit charge, seat charge; timing shutdown and dormant mode
    Enviromental parameter
    Temperature Working temperature: - 10 ℃ to 50 ℃;
    Storage temperature: - 40 ℃ ~ 70 ℃
    encapsulation IP54
    impact 30g 11ms（ IEC 60068-2-27 ）
    vibration 10HZ~150HZ~10HZ 0.15mm （ IEC 60068-2-6 ）
    certification CE、FCC、ROHS
    weight 735g 735g 840g 840g 735g
    Size（mm) 274×97×78 274×97×78 274×106×78 274×110×78   274×91×78
