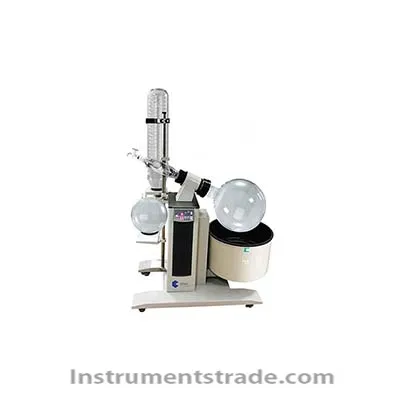

Features: 1. Designed to be ergonomic, easier to operate and safer to use 2. Motor lifting stroke 300mm 3. Upright triple serpentine condensing coil with a condensation area of 1.65m2 4. Motor speed digital display, speed range 10 ~ 120 rpm 5. High vacuum sealing degree and strong evaporation ability 6. Bring your own mobile platform for easy laboratory movement 7. When the motor is overloaded or stops rotating, the water bath will automatically drop to the lowest point. Technical Parameters: Rotation speed: 10~120rpm Evaporation capacity: Max.8.0 L/h Reachable vacuum: 2.6 hPa or less Temperature adjustment range: room temperature +10~90°C Temperature adjustment accuracy: ±2 °C Temperature Control: Microcomputer PID Control Speed temperature setting • Display: Key input setting • Digital display Safety function: Fuse, anti-air-burning circuit, motor overload water bath automatically drop Water bath power: 9.0 KW Condenser: Upright three-layer serpentine coil Cooling area 1.65m2 Rotating connecting shaft: diameter 60mm × length 270mm Sample bottle: spherical flask 50 L Recycling bottle: spherical flask 25 L Vacuum seal: Teflon Teflon and fluorinated rubber gasket Lifting stroke: Electric lifting 300 mm Operating ambient temperature: 5 ~ 35 °C Input power: AC380V 50HZ Bath size • Material: Diameter 530mm × depth 310mm SUS304+ Teflon coating approximately 70 L External dimensions • Weight: 1120W × 650D × 1880H / 145kg
Features: 1. Designed to be ergonomic, easier to operate and safer to use 2. Motor lifting stroke 300mm 3. Upright triple serpentine condensing coil with a condensation area of 1.65m2 4. Motor speed digital display, speed range 10 ~ 120 rpm 5. High vacuum sealing degree and strong evaporation ability 6. Bring your own mobile platform for easy laboratory movement 7. When the motor is overloaded or stops rotating, the water bath will automatically drop to the lowest point.
