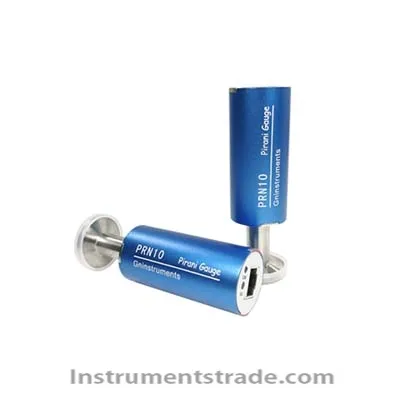

CX-PRN10 Pirani vacuum sensing transmitter Features: 1. One click intelligent calibration: automatic recognition of atmosphere and high vacuum. 2. Temperature monitoring corrects vacuum degree, and the accuracy is not affected by environmental temperature. 3. The dual output form of analog and digital signals has a wide range of applications. 4. Using KF16 standard flange and RJ45 electrical plug, the installation and wiring are simple and convenient. 5. Highly compatible with international mainstream brand interfaces, achieving seamless replacement. The all stainless steel measuring chamber is suitable for high cleanliness and ultra-high vacuum environments. 7. Exquisite and compact in appearance, saving valuable space on equipment. 8. Stable performance and long service life Technical parameters: Vacuum contact material: SS316L stainless steel, tungsten, kovar, glass Measurement range: 1.0 × 10-1.0 × 10 * 5Pa (air, N2) (correction factor required for other gases) Measurement accuracy: one × 10-1.0 × 10Pa: ± 15% one × 10+4~1.0 × 10+5Pa: ± 50% one × 10-1.0 × 10+3Pa: ± 2% Measurement repeatability: 1.0 × 10+3-1.0 × 10+5Pa: ± 5% Data collection: Resolution: 1%; Response time:<100ms Temperature characteristics: Working temperature: 0 ℃~+45 ℃; Storage temperature: -40 ℃~+75 ℃ Probe baking temperature: 180 ℃ Max (Remove electronic control unit) Maximum power consumption: 1.5Max Power supply:+24V (± 20%)/0.5A (applicable to+5.0VDC to+32VDC) Electrical signal interface: RJ45 network port (analog voltage, RS485, power input, model identification terminal) Vacuum chamber: Interface: DN16ISO-KF (other optional); Maximum pressure: 1.5 × 10+5Pa Weight: 95g (DN16ISO-KF flange)
