CP40 fully concealed police hose scope

Product ID:WWnk032

Price: Please inquire PDF Format
Supply Ability:150 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCP40
    Brand NameSZGUANTAI
    Payment TermsTT,PAYPAL

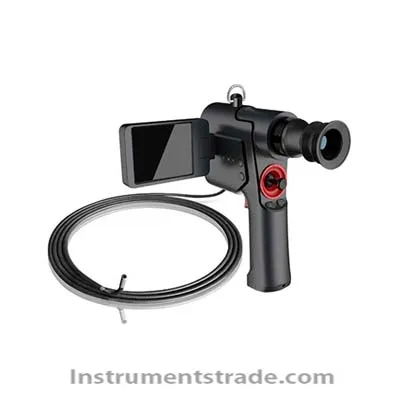

    CP40 fully concealed police hose scope
    Introduction:
    The CP40 series infrared night vision goggles are a lightweight and portable infrared night vision detection device that features a built-in high-resolution OLED display screen and a 940nm infrared light source. The fully concealed design effectively avoids exposure and protects the safety of investigators. Real time observation and monitoring of people or objects at a distance in low light or completely black environments. External quick plug display screen, suitable for team collaboration. It has functions such as photography, video recording, and sound collection, and can be used for investigation and evidence collection by relevant departments such as public security, police, fire, and customs when carrying out criminal investigation, search, rescue, explosive ordnance disposal, and anti smuggling tasks.
    characteristic:
    1. Adopting an infrared LED light source with a wavelength of 940nm and a built-in OLED high-definition display screen, the observed images are clear, the colors are vivid, and the picture quality is more delicate. The whole machine has no reflective objects, which can avoid exposure in concealed situations and effectively protect the safety of observers.
    2. The host is equipped with a 3.5-inch quick plug foldable display screen, which can be opened by inspectors to synchronously monitor the detection screen and adjust the optimal observation angle (maximum angle of 90 °) by rotating clockwise. The display screen can also be removed for multiple people to observe during pursuit and tracking, making it suitable for team collaboration.
    3. The front end of the probe integrates an audio module, allowing observers to not only see what is happening through the screen, but also hear what is being said. While monitoring in real-time, it is also possible to collect images, videos, and sounds, making the data collected for investigation and evidence collection more complete.
    4. Observers can adjust the refractive power reasonably by rotating the diopter adjustment knob on the observation eyepiece according to their own visual condition, and adjust the image of the built-in OLED display screen to the clearest state to obtain a better observation field of view.
    5. Equipped with tactical flashlights, which can quickly switch between flashing/lighting/rescue SOS functions through buttons. High light intensity, suitable for auxiliary lighting at night. In emergency situations, the flashing function can be used to alert relevant personnel or send SOS rescue signals.
    6. Equipped with a built-in G-sensor, the image can be flipped by quickly shaking the host with the C gesture (the gesture function needs to be enabled in the menu in advance), making the built-in display screen image always in the forward direction for easier observation.
    7. The CP40 series can be customized with different specifications of insertion tubes, which can better adapt to different working environments. Specially equipped with a 1 million pixel explosion-proof pipeline, users can quickly replace it.
    Technical parameters:
    Display screen: 8-inch IPS full view industrial high-definition touch LCD screen
    Display resolution: 1024 * 768
    User interface: Menu navigation using touch screen and physical buttons
    Image display: Supports real-time 5x magnification, supports full screen/center mode display
    LED brightness level: high and low brightness modes, each with 5 levels of brightness adjustment
    Function modes: Original color mode, Black and White mode, Negative mode, High color mode, Close mode, Far mode
    Screen backlight brightness: adjustable
    Image recording: equipped with photography and video recording functions, capable of capturing images during recording
    Screen freeze (freeze): Supports
    Watermark setting: supports time/image/directory watermarking
    Image scaling: Supports zooming in and out of images through pinch gestures
    File format: Image JPEG/BMP, Video MP4
    Image rotation: can rotate 0 °, 90 °, 180 °, 270 °
    File management: can view videos and images in full screen, and perform operations such as deleting/renaming/viewing details on files
    Image Preview: List format
    Flashing function: The flashing light level (0-5 levels) and delay time (0S-16S) can be adjusted
    Graphic annotations: handwritten lines, arrows, boxes, circular markings, text annotations
    Operating memory: 2GB
    Storage medium: Standard storage space of 16GB, expandable to 32GB or 64GB, can be connected to an external USB flash drive
    Cross ruler: Supports
    Control mode: mechanical control
    Languages and input methods: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, Dutch, and more than ten other languages. Input methods can be downloaded by turning on WiFi
    Video output port: VGA (optional)/HDMI (standard) interface
    Audio output port: 3.5mm headphone jack (optional)
    System security protection: password lock protection function
    Host dimensions: 245mm × 195mm × 95mm
    Host weight: 2.85Kg (including battery)
    Handle weight: 1.1kg

  • Introduction:
    The CP40 series infrared night vision goggles are a lightweight and portable infrared night vision detection device that features a built-in high-resolution OLED display screen and a 940nm infrared light source. The fully concealed design effectively avoids exposure and protects the safety of investigators. Real time observation and monitoring of people or objects at a distance in low light or completely black environments. External quick plug display screen, suitable for team collaboration. It has functions such as photography, video recording, and sound collection, and can be used for investigation and evidence collection by relevant departments such as public security, police, fire, and customs when carrying out criminal investigation, search, rescue, explosive ordnance disposal, and anti smuggling tasks.
